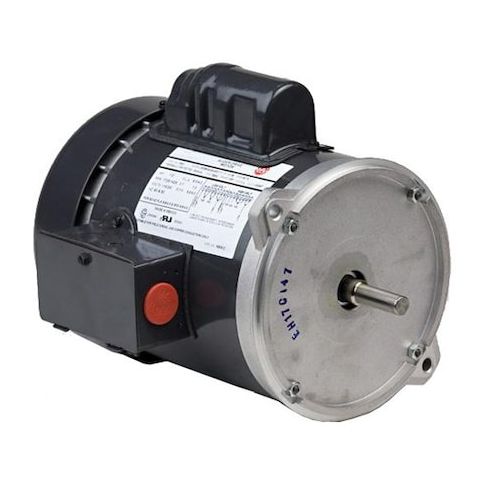

Farm Duty Motor, 3-Phase, 1/3 HP, 190/380V; 208-230V/460V, 1, 725 Nameplate RPM, 56Y Frame MPN:FD13SM2DZYR
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0408080
Farm Duty Motor, 3-Phase, 1/3 HP, 190/380V; 208-230V/460V, 1, 725 Nameplate RPM, 56Y Frame
This 1/3 HP, three-phase farm duty motor is designed for heavy-duty applications, providing reliable performance in harsh environments. Its totally enclosed fan-cooled design keeps the motor cool and protected from dust and debris, while its steel frame ensures durability and longevity. Suitable for use in a variety of settings, including agricultural, industrial, and commercial applications, this motor is ideal for powering pumps, fans, and other equipment. With a continuous duty cycle and manual thermal protection, it provides peace of mind for operators, and its compact size makes it easy to install and maintain.
Top product features:
- Three-phase motor design
- Totally enclosed fan cooled motor enclosure
- Continuous duty cycle
Top product applications:
- Pumps and irrigation systems for agricultural use
- Conveyor belts and material handling equipment for farming and ranching operations
- Aeration and ventilation systems for livestock enclosures and agricultural buildings
Farm Duty Motor, Three Phase, Motor Design Three-Phase, 1/3 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 1.8-2.0/1.0 A, 2.0/1.0 A, 56Y Frame, Usable @ 208V Usable at 208V, 60/50 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Flange, Motor Frame Material Steel
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 12.00
- Package Height: 12.00
- Package Weight: 43.00
Product info last updated on February 11, 2026 6:53pm UTC
Category: Motors
