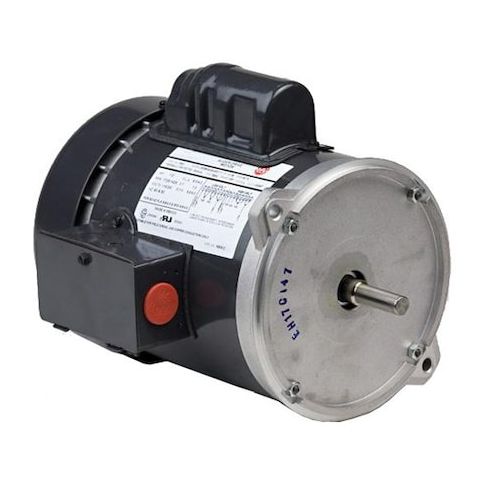

Farm Duty Motor, Capacitor-Start, 1 HP, 115/208-230V AC, 1, 725 Nameplate RPM, 56Y Frame MPN:FD1CM2PZY
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0408044
Farm Duty Motor, Capacitor-Start, 1 HP, 115/208-230V AC, 1, 725 Nameplate RPM, 56Y Frame
This Farm Duty Motor from US Motors is a reliable and efficient solution for agricultural and industrial applications. Designed for continuous duty, it features a totally enclosed fan-cooled enclosure and rigid base mounting for durability and easy installation. With a high starting torque and single-phase capacitor-start design, it provides smooth and quiet operation. Suitable for use in a variety of settings, including farms, ranches, and industrial facilities, this motor is ideal for powering pumps, fans, and other equipment. Its compact size and low maintenance requirements make it an excellent choice for applications where space and downtime are limited.
Top product features:
- Totally Enclosed Fan Cooled design provides a safe and reliable operation in harsh environments.
- Motor Shaft Rotation allows for clockwise and counterclockwise operation.
- Single Phase, Capacitor-Start motor design enables efficient and cost-effective operation.
Top product applications:
- Pumps and irrigation systems
- Well drilling and pumping equipment
- Food processing and manufacturing machinery
Farm Duty Motor, Single Phase, Motor Design Capacitor-Start, 1 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 12.8/6.5-6.4 A, 56Y Frame, Usable @ 208V Usable at 208V, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Rigid Base, Motor Frame Material Steel
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.32
- Package Width: 10.50
- Package Height: 10.88
- Package Weight: 36.00
Product info last updated on February 1, 2026 10:17pm UTC
Category: Motors
