Farm Duty Motor, Capacitor-Start, 2 HP, 115/230V AC, 3, 450 Nameplate RPM, 143TZ Frame MPN:FD2CA1P14
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0408010

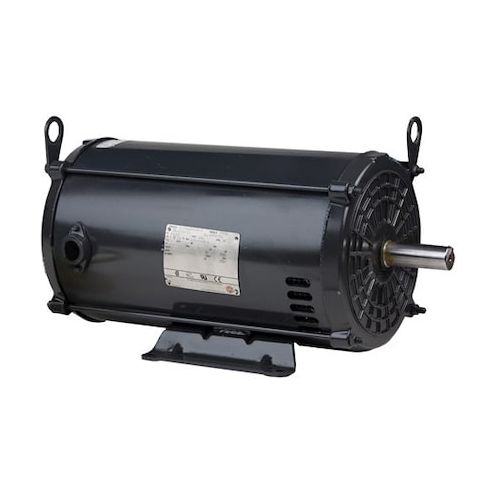

Farm Duty Motor, Capacitor-Start, 2 HP, 115/230V AC, 3, 450 Nameplate RPM, 143TZ Frame
This 2 HP Farm Duty Motor is designed for heavy-duty applications in agricultural settings, offering reliable performance and long-lasting durability. With a single-phase, capacitor-start design, it provides efficient operation and reduced energy consumption. Suitable for continuous duty cycles, it can handle demanding tasks such as powering irrigation systems, pumps, and other farm equipment. Its totally enclosed air-over design protects against dust and moisture, ensuring optimal performance in harsh environments. Ideal for farmers and agricultural businesses, this motor is a reliable solution for a variety of applications, including irrigation systems, grain handling, and livestock equipment.
Top product features:
- Totally Enclosed Air-Over motor enclosure design provides protection from dust and debris.
- Motor shaft rotation can be clockwise or counterclockwise, allowing for flexible installation.
- Continuous duty cycle enables the motor to operate for extended periods without interruption.
Top product applications:
- Pump station
- Well pump
- Small farm irrigation system
Farm Duty Motor, Single Phase, Motor Design Capacitor-Start, 2 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 22.2/11.1 A, 143TZ Frame, Usable @ 208V Not Usable at 208V, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rigid Base, Motor Frame Material Steel, Shaft Dia. 7/8 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 10.50
- Package Height: 10.88
- Package Weight: 32.00
Product info last updated on March 3, 2026 6:52pm UTC
Category: Motors
