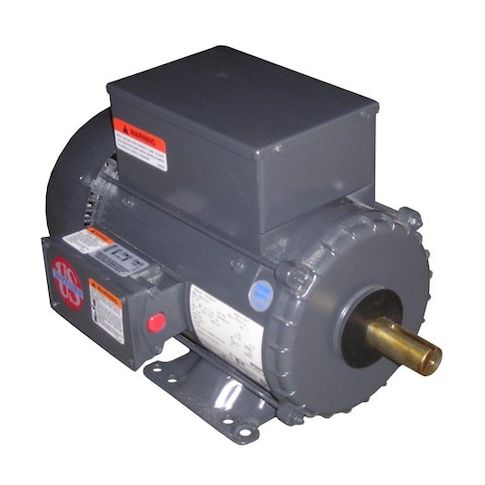

Farm Duty Motor, Capacitor-Start, 2 HP, 115/230V AC, 1, 725 Nameplate RPM, 56HZ Frame MPN:FD2CM2PHZ
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0407974
Farm Duty Motor, Capacitor-Start, 2 HP, 115/230V AC, 1, 725 Nameplate RPM, 56HZ Frame
This US Motors Farm Duty Motor is a reliable and efficient solution for various applications requiring a 2 HP, single-phase motor. With a capacitor-start design, it delivers 1,725 RPM and 20.0/10.0 A full-load amps at 115/230V AC. Suitable for continuous duty cycles in temperatures up to 40°C, this motor is ideal for agricultural, industrial, and commercial settings. Its totally enclosed fan-cooled design and rigid base mounting ensure a long lifespan and easy installation. Perfect for irrigation pumps, grain dryers, and other heavy-duty equipment, this motor provides a cost-effective and durable solution for demanding applications.
Top product features:
- Totally Enclosed Fan Cooled Design
- Motor Shaft Rotation in Both Clockwise and Counterclockwise Directions
- Continuous Duty Cycle Capability
Top product applications:
- Pumping water from a well or reservoir
- Running irrigation systems for crops or gardens
- Powering a farm's grain mill or feed grinder
Farm Duty Motor, Single Phase, Motor Design Capacitor-Start, 2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 20.0/10.0 A, 56HZ Frame, Usable @ 208V Not Usable at 208V, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Rigid Base, Motor Frame Material Steel
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 12.00
- Package Height: 12.00
- Package Weight: 50.00
Product info last updated on March 11, 2026 10:26am UTC
Category: Motors
