Farm Duty Motor, Capacitor-Start/Run, 1 HP, 115/208-230V AC, 1, 725 Nameplate RPM, 56 Frame MPN:FD1CA2J
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0407965

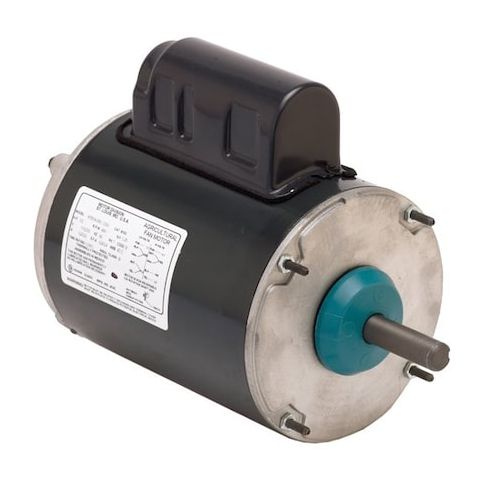

Farm Duty Motor, Capacitor-Start/Run, 1 HP, 115/208-230V AC, 1, 725 Nameplate RPM, 56 Frame
This rugged Farm Duty Motor is designed for demanding agricultural applications, providing reliable performance in harsh environments. With a capacitor-start/run design, it offers efficient operation and long motor life. Suitable for a variety of uses, including irrigation systems, grain handling equipment, and farm machinery, this motor can withstand the rigors of continuous duty cycles. Its totally enclosed air-over design protects against dust and moisture, while the steel frame ensures durability. Available for single-phase operation at 115/208-230V AC, this motor is a reliable choice for farmers and agricultural professionals seeking a dependable and long-lasting power solution.
Top product features:
- Totally Enclosed Air-Over Motor Enclosure Design
- Motor Shaft Rotation CW/CCW
- Capacitor-Start/Run Motor Design
Top product applications:
- Farm irrigation systems
- Well drilling equipment
- Pumping stations for water treatment plants
Farm Duty Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 10.9/5.4-5.4 A, 56Y Frame, Usable @ 208V Usable at 208V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rigid Base, Motor Frame Material Steel
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 12.00
- Package Height: 12.00
- Package Weight: 39.00
Product info last updated on February 2, 2026 12:59pm UTC
Category: Motors
