Motor, 3PH, 7.5HP, 1800, 208-230/460V, WD TC MPN:WD7P2DCR
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0407021
Motor, 3PH, 7.5HP, 1800, 208-230/460V, WD TC

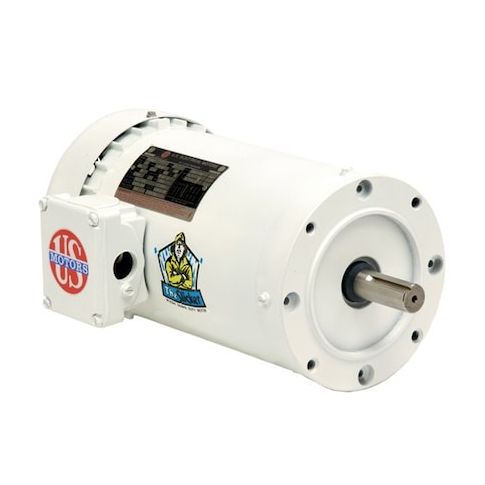

This 7.5 HP, three-phase motor from US Motors is designed for washdown applications in harsh environments. With a NEMA Design B rating, it can operate continuously at 40°C ambient temperatures. The totally enclosed fan-cooled design provides reliable performance in demanding conditions. Suitable for use in 208-230/460V applications, this motor offers a high service factor of 1.15 and a durable frame design. Its compact size and robust construction make it ideal for use in food processing, pharmaceutical, and other industries where cleanliness and reliability are paramount. Its continuous duty cycle and wide operating range make it a versatile solution for various applications.
Top product features:
- Three-phase operation
- Totally enclosed fan cooled design
- Continuous duty cycle
Top product applications:
- Food Processing Equipment
- Chemical Processing Equipment
- Pharmaceutical Manufacturing Equipment
Washdown Motor, Three Phase, Motor Design Three-Phase, 7 1/2 hp HP, Nameplate RPM 1,765 RPM, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 20.0-18.2/9.1 A, 213TC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.88
- Package Width: 14.50
- Package Height: 28.50
- Package Weight: 117.00
Product info last updated on February 25, 2026 3:09pm UTC
Category: Motors
