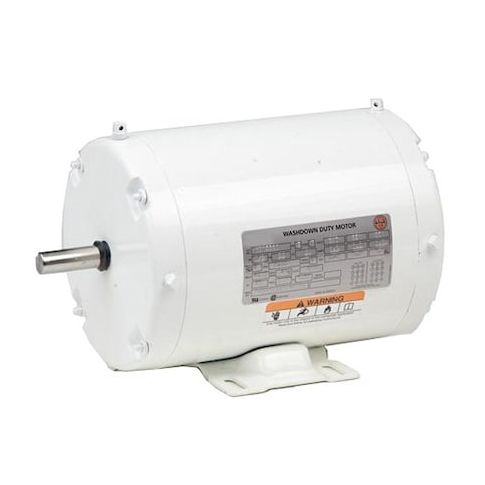

Motor, 3PH, 7.5HP, 1800, 208-230/460V, WD MPN:WD7P2D
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0406960
Motor, 3PH, 7.5HP, 1800, 208-230/460V, WD
This 7.5 HP, three-phase motor is designed for washdown applications and features a totally enclosed fan-cooled enclosure to withstand harsh environments. Suitable for use at 208V, it operates at 1,765 RPM and has a continuous duty cycle. The motor's 1.15 service factor ensures reliable performance, while its Class F insulation ensures long lifespan. Ideal for applications such as food processing, pharmaceuticals, and chemical plants, this motor provides a high level of protection against water and dust. Its compact size and robust construction make it a reliable choice for demanding industrial settings.
Top product features:
- Three-phase motor design
- Totally enclosed fan cooled motor enclosure
- Continuous duty cycle
Top product applications:
- Food Processing Equipment
- High-Pressure Washing Systems
- Automotive Manufacturing Equipment
Washdown Motor, Three Phase, Motor Design Three-Phase, 7 1/2 hp HP, Nameplate RPM 1,765 RPM, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 20.0-18.2/9.1 A, 213 Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 23.00
- Package Width: 14.50
- Package Height: 15.00
- Package Weight: 117.00
Product info last updated on February 27, 2026 5:17am UTC
Category: Motors
