Motor, 3PH, 5HP, 3600, 230/460V, XP JM PE MPN:XJ5P1BM
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0406391

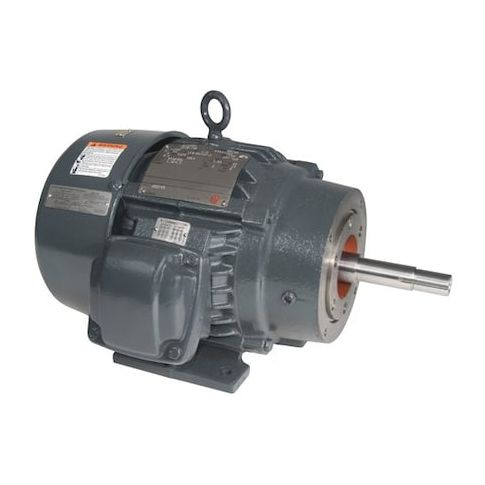

Motor, 3PH, 5HP, 3600, 230/460V, XP JM PE
This 5 horsepower, three-phase motor is designed for hazardous locations and features a totally enclosed fan-cooled enclosure for maximum safety and reliability. With a continuous duty cycle and rigid base mounting, it's suitable for a wide range of applications including industrial processes, manufacturing facilities, and outdoor environments. Its compact size and high efficiency make it an ideal choice for space-constrained areas. With a 1.0 service factor and 60 Hz operation, this motor provides reliable performance in a variety of conditions, from temperatures up to 40°C. Ideal for applications requiring high power and safety.
Top product features:
- Totally Enclosed Fan Cooled design provides a safe and efficient cooling system for the motor.
- Three-Phase design allows for high power output and efficient operation in a variety of applications.
- Continuous Duty Cycle capability enables the motor to operate at full capacity without interruption.
Top product applications:
- Industrial Processing Machinery
- Pumping Systems in Chemical Plants
- Material Handling Equipment in Hazardous Environments
Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 5 hp HP, Nameplate RPM 3,510 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 12.1/6.1 A, 184 Frame, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Hazardous Location Class Class I, Class II, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous, Motor Mounting Type Rigid Base, NEMA Design B, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 23.00
- Package Width: 14.50
- Package Height: 15.00
- Package Weight: 110.00
Product info last updated on April 5, 2026 6:30am UTC
Category: Motors
