3-Phase Motor, 5 HP, 184T Frame, 230V AC, 460V AC Voltage, 1, 765 Nameplate RPM MPN:H5T2B
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0406215
3-Phase Motor, 5 HP, 184T Frame, 230V AC, 460V AC Voltage, 1, 765 Nameplate RPM

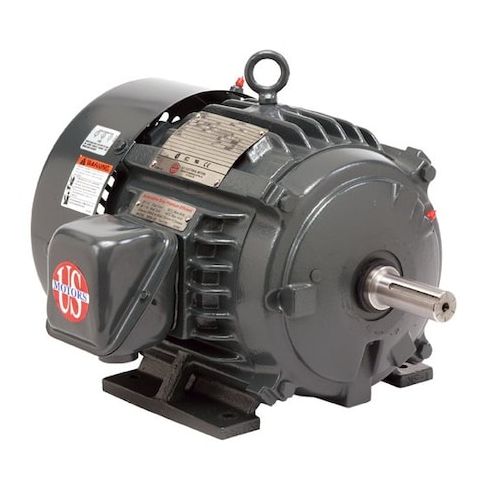

This 5 HP 3-Phase Motor from US Motors is designed for heavy-duty applications requiring continuous operation. With a nameplate RPM of 1,765, this motor provides efficient and reliable performance in a variety of settings. Its Totally Enclosed Fan-Cooled (TEFC) design ensures optimal cooling and reduced maintenance costs. Suitable for use in factories, warehouses, and other industrial environments, this motor is ideal for applications such as conveyor systems, pumps, and fans. Its inverter-rated design makes it suitable for use with variable frequency drives, providing flexibility and energy efficiency in a wide range of industrial applications.
Top product features:
- Totally Enclosed Fan-Cooled Design for improved motor durability and reduced maintenance
- Three-Phase Vector Motor Design for efficient and reliable operation
- Keyed Motor Shaft for secure and precise motor mounting
Top product applications:
- Power Generation and Distribution Systems
- Industrial Pumps and Compressors
- Material Handling and Conveying Equipment
Vector Motor, Three Phase, Motor Design Three-Phase, 5 HP, Nameplate RPM 1,765, No. of Speeds 1, Voltage 230V AC, 460V AC, Full Load Amps 13.4/6.7 A, 184T Frame, 60 Hz Hz, Motor Service Factor 1, Ins. Class H, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Horizontal Footed, Motor Mounting Position Horizontal, Inverter Rated Inverter Rated
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 23.00
- Package Width: 14.50
- Package Height: 15.00
- Package Weight: 110.00
Product info last updated on March 9, 2026 8:33pm UTC
Category: Motors
