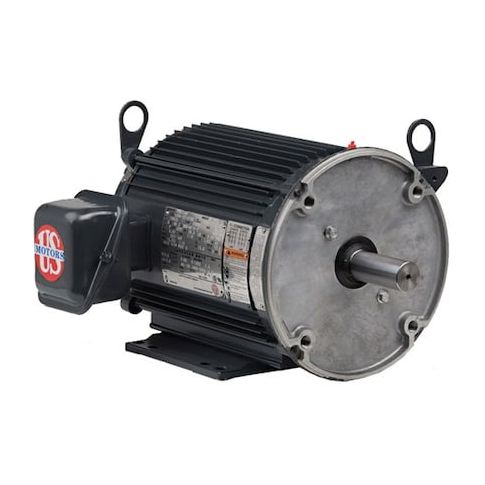

3-Phase Vector Motor, 5 HP, 215 Frame, 230/460V AC Voltage, 1, 175 Nameplate RPM MPN:UN5T3BC
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0406041
3-Phase Vector Motor, 5 HP, 215 Frame, 230/460V AC Voltage, 1, 175 Nameplate RPM
This 3-Phase Vector Motor is a high-performance solution for demanding applications, delivering 5 HP of power with a nameplate RPM of 1,175. Its 215 frame design and 230/460V AC voltage make it suitable for a wide range of industries, including manufacturing, oil and gas, and water treatment. With a speed range of 5,000:1 and a maximum speed of 1,175 RPM, this motor provides efficient and reliable operation in high-torque applications. Its totally enclosed non-ventilated design and NEMA Design A rating ensure safe and durable performance in harsh environments, making it an ideal choice for continuous-duty applications.
Top product features:
- Three-phase operation for efficient power distribution
- Totally Enclosed Non-Ventilated (TEFC) enclosure for protection from environmental factors
- 445 ft-lb of torque for high-performance applications
Top product applications:
- Water Pumps
- Sawmills and woodworking machinery
- Oil and Gas Industry
Vector Motor, Three Phase, Motor Design Three-Phase, 5 HP, Nameplate RPM 1,175, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 15.9/7.9 A, 215 Frame, Torque 445 ft-lb, Max. Speed 1,175 RPM, Speed Range 5,000:1, 60 Hz Hz, Max. Operating Frequency 60 Hz, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class F, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 23.00
- Package Width: 16.50
- Package Height: 15.00
- Package Weight: 149.00
Product info last updated on February 12, 2026 11:03am UTC
Category: Motors
