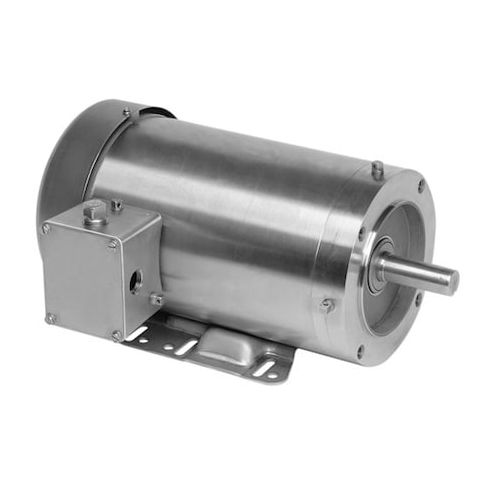

WashdownMotor, 5hp, 3515RPM, 208-230/460VAC MPN:WDS5P1ACR
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0405971
WashdownMotor, 5hp, 3515RPM, 208-230/460VAC
This rugged 5HP three-phase motor is designed for harsh washdown environments and features a totally enclosed fan-cooled (TEFC) design for optimal protection against dust and moisture. With a continuous duty cycle and 1.15 service factor, it can handle demanding applications in food processing, pharmaceutical, and other industries where reliability is paramount. The motor's compact 184 frame size and CW/CCW rotation make it ideal for tight spaces and versatile installation. Operating at 208-230/460V, it provides flexibility in power supply and is built to last with a Class F insulation and 40°C maximum ambient temperature.
Top product features:
- Three-Phase Design
- Totally Enclosed Fan Cooled Enclosure
- Continuous Duty Cycle Capability
Top product applications:
- Food Processing Machinery
- Chemical Processing Equipment
- Pharmaceutical Manufacturing Machinery
Washdown Motor, Three Phase, Motor Design Three-Phase, 5 hp HP, Nameplate RPM 3,515 RPM, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 13.3-11.8/5.9 A, 184 Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 40 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.88
- Package Width: 14.50
- Package Height: 28.50
- Package Weight: 60.00
Product info last updated on April 1, 2026 11:05am UTC
Category: Motors
