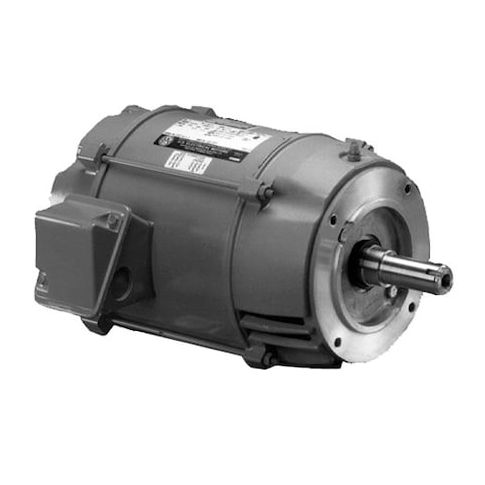

Motor, 3PH, 5HP, 208-230/460V, ODP JM FTL MPN:DJ5P2DU

Motor, Bearing Protection Double Shields, Body Dia. 10.4 in, Bolt Circle Dia. 5 7/8 in, CC Number CC030A, Conduit Box Position F1, Duty Cycle Continuous, Frame 184JM, Hz 60/50, Full Load Amps 13.7-12.4/6.2, Full Load Amps @ 50Hz 13.7-12.4/6.2, HP 5, HP @ 50Hz 5, Ins. Class F, Inverter Rated Inverter Rated, Inverter Rating 20:1 (VT), 4:1 (CT), Length Less Shaft 12 13/16 in, Max. Ambient Temp. 40 Degrees C, Max. SF Amps 15.9-14.1/7.1, Motor Bearings Ball, Motor Design Three-Phase
