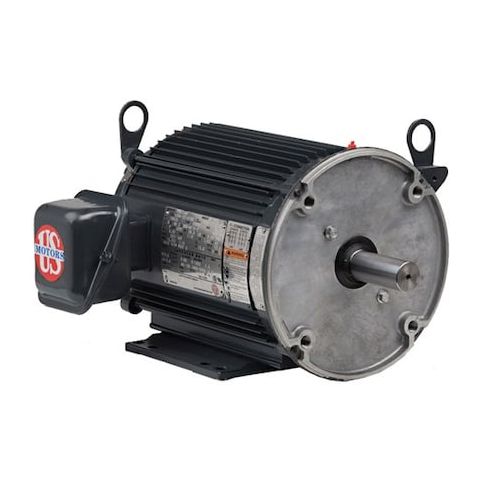

3-Phase Vector Motor, 3 HP, 182 Frame, 230/460V AC Voltage, 1, 770 Nameplate RPM MPN:UN3T2BC
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0405034
3-Phase Vector Motor, 3 HP, 182 Frame, 230/460V AC Voltage, 1, 770 Nameplate RPM
The 3-Phase Vector Motor from US Motors is a high-performance solution for demanding applications. With a 3 HP rating and 1,770 nameplate RPM, this motor delivers efficient and reliable operation. Suitable for use in a variety of industries, including manufacturing, material handling, and food processing, this motor's continuous duty cycle and 5,000:1 speed range make it ideal for applications requiring precise control. Its totally enclosed non-ventilated design provides protection from harsh environments, while its compact 182 frame size makes it easy to integrate into existing systems. Perfect for applications requiring high torque and efficiency.
Top product features:
- Three-phase operation allows for efficient power distribution and reduced energy losses.
- The motor has a speed range of 5,000:1, enabling precise control over motor speed.
- Totally enclosed non-ventilated design protects the motor from dust and moisture, extending its lifespan.
Top product applications:
- Pumps
- Air Compressors
- Conveyors
Vector Motor, Three Phase, Motor Design Three-Phase, 3 HP, Nameplate RPM 1,770, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 10.1/5.0 A, 182 Frame, Torque 573 ft-lb, Max. Speed 1,770 RPM, Speed Range 5,000:1, 60 Hz Hz, Max. Operating Frequency 60 Hz, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class F, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 23.00
- Package Width: 14.50
- Package Height: 15.00
- Package Weight: 65.00
Product info last updated on March 4, 2026 4:54pm UTC
Category: Motors
