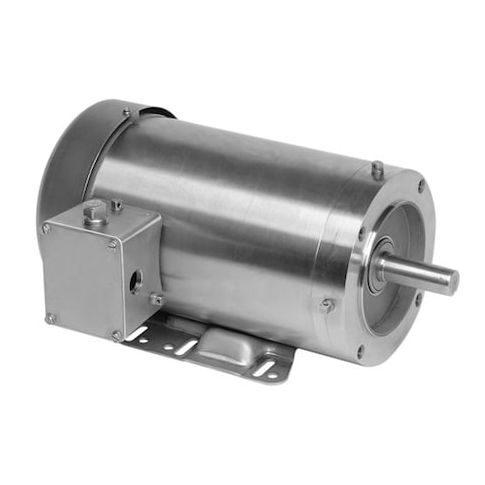

WashdownMotor, 3hp, 1765RPM, 208-230/460VAC MPN:WDS3P2ACR
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0404921
WashdownMotor, 3hp, 1765RPM, 208-230/460VAC
This three-phase 3HP motor is designed for heavy-duty applications in washdown environments, making it ideal for use in food processing, pharmaceutical, and other sanitary-grade facilities. With a totally enclosed fan-cooled design, it provides reliable operation in harsh conditions. The motor's high service factor and continuous duty cycle ensure efficient performance, while its rigid base mounting type provides stability and easy installation. Available in 208-230/460V configurations, this motor meets the demands of high-speed applications, including pumps, conveyors, and mixers, and ships in 40 days with a minimum order quantity of one unit.
Top product features:
- Totally Enclosed Fan Cooled design provides a clean and dry environment for the motor.
- Continuous Duty Cycle allows for uninterrupted operation.
- NEMA Design B ensures reliable operation in harsh environments.
Top product applications:
- Industrial Laundry Equipment
- Food Processing Machinery
- Water Treatment Plants
Washdown Motor, Three Phase, Motor Design Three-Phase, 3 hp HP, Nameplate RPM 1,765 RPM, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 8.3-7.6/3.8 A, 182 Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 40 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.88
- Package Width: 14.50
- Package Height: 28.50
- Package Weight: 1.00
Product info last updated on April 10, 2026 8:16am UTC
Category: Motors
