Motor, 3PH, 3HP, 208-230/460V, WD TC FTL MPN:WD3P2DCR
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0404650

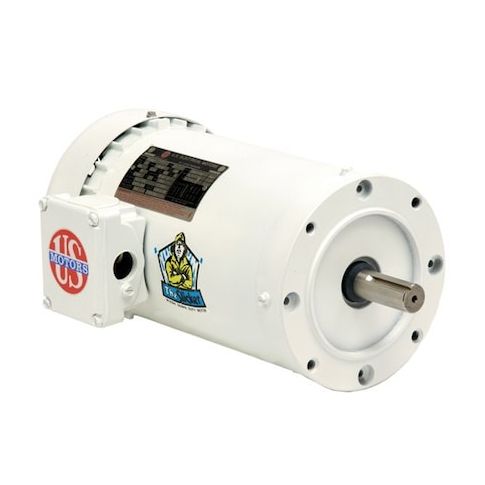

Motor, 3PH, 3HP, 208-230/460V, WD TC FTL
This 3-phase, 3-horsepower motor is designed for demanding washdown applications, with a totally enclosed fan-cooled enclosure and a high service factor of 1.15. Suitable for use at 208-230/460V AC, it operates at a reliable 1,765 RPM with a continuous duty cycle. The motor's compact 182 frame makes it ideal for a variety of applications, including food processing, pharmaceutical, and chemical manufacturing. Its high-quality construction and durable design ensure long-lasting performance, while its compact size and weight make it easy to integrate into tight spaces. Perfect for use in harsh environments, this motor is a reliable choice for demanding industrial applications.
Top product features:
- Three-phase operation allows for efficient power distribution and utilization.
- Totally enclosed fan-cooled design enables reliable operation in harsh environments.
- Continuous duty cycle capability supports uninterrupted operation for extended periods.
Top product applications:
- Industrial Food Processing
- Automotive Assembly Line
- Pumping Stations
Washdown Motor, Three Phase, Motor Design Three-Phase, 3 hp HP, Nameplate RPM 1,765 RPM, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 8.2-7.6/3.8 A, 182 Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 40 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.25
- Package Width: 14.25
- Package Height: 22.50
- Package Weight: 58.00
Product info last updated on April 10, 2026 4:44am UTC
Category: Motors
