Motor, 3PH, 3/4HP, 208-230/460V, PF 56HC MPN:WDP34S2AHC
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0404142

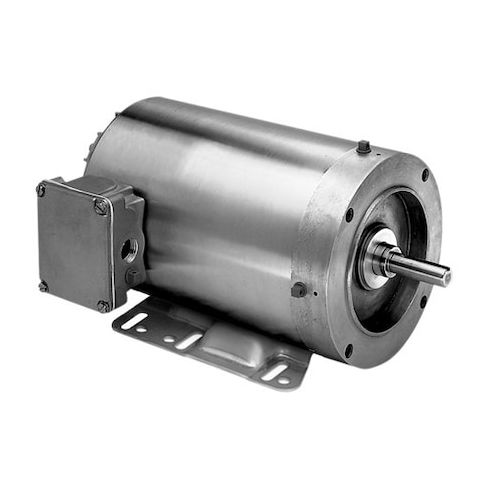

Motor, 3PH, 3/4HP, 208-230/460V, PF 56HC
The US Motors 3PH 3/4HP Washdown Motor is a reliable and efficient solution for demanding industrial applications. Designed for continuous operation, this 3-phase motor operates at 1,800 RPM and offers a service factor of 1.15. With a totally enclosed non-ventilated design, it provides protection against dust and water, making it ideal for use in harsh environments. Suitable for applications such as food processing, chemical plants, and pharmaceutical manufacturing, this motor offers a durable and long-lasting solution for heavy-duty use. Its compact size and low weight make it easy to integrate into existing systems.
Top product features:
- Three Phase Operation
- Totally Enclosed Non-Ventilated Enclosure Design
- Continuous Duty Cycle
Top product applications:
- Water treatment plants
- Chemical processing facilities
- Food processing and packaging plants
Washdown Motor, Three Phase, Motor Design Three-Phase, 3/4 hp HP, Nameplate RPM 1,800 RPM, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 2.8-2.7/1.3 A, 56 Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 50 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 10.50
- Package Height: 10.88
- Package Weight: 31.00
Product info last updated on March 24, 2026 11:21am UTC
Category: Motors
