Motor, 3PH, 3/4HP, 208-230/460V, EFF 81.5 MPN:WDS34S1ACR
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0404081
Motor, 3PH, 3/4HP, 208-230/460V, EFF 81.5

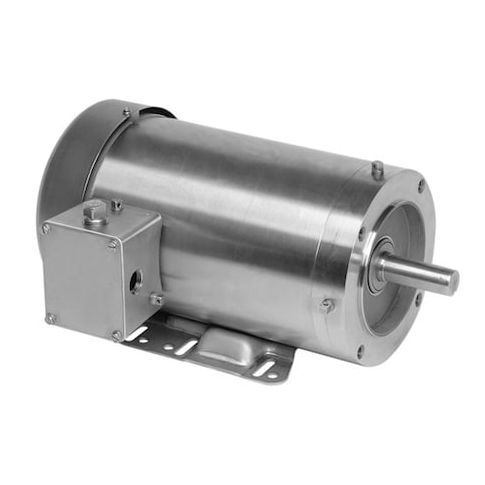

This US Motors 3-phase washdown motor is designed for heavy-duty applications in harsh environments. With a 3/4 horsepower rating and 3,520 RPM, it's perfect for use in food processing, pharmaceutical, and chemical plants where cleanliness and reliability are paramount. The motor's totally enclosed fan-cooled design and Class F insulation ensure efficient and safe operation, even in high-temperature environments. Its 81.5% efficiency rating also reduces energy costs. Suitable for continuous duty cycles, this motor is ideal for use in applications such as pumps, conveyors, and mixers where reliability and durability are essential.
Top product features:
- Three-phase operation
- Totally enclosed fan cooled design
- Continuous duty cycle
Top product applications:
- Food Processing Machinery
- Packaging Machinery
- Water Treatment Plants
Washdown Motor, Three Phase, Motor Design Three-Phase, 3/4 hp HP, Nameplate RPM 3,520 RPM, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 2.2-2.1/1.0 A, 56 Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 40 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.50
- Package Width: 12.50
- Package Height: 19.50
- Package Weight: 39.00
Product info last updated on April 1, 2026 8:04am UTC
Category: Motors
