3-Phase Vector Motor, 2 HP, 145 Frame, 230/460V AC Voltage, 1, 750 Nameplate RPM MPN:UN2T2BC
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0403844

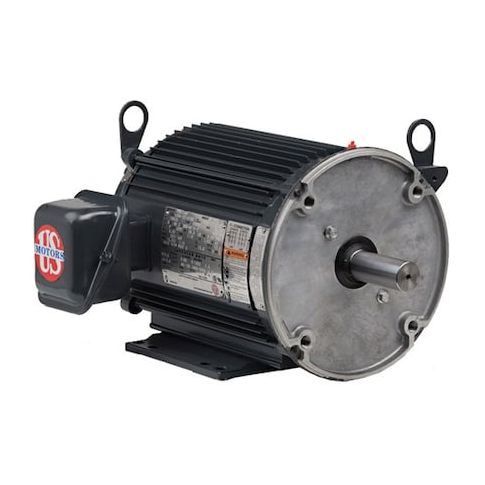

3-Phase Vector Motor, 2 HP, 145 Frame, 230/460V AC Voltage, 1, 750 Nameplate RPM
This 3-Phase Vector Motor from US Motors is a high-performance solution for demanding applications. With a 2 HP rating and 1,750 nameplate RPM, it provides reliable operation in a variety of environments. The motor's 5,000:1 speed range and 543 ft-lb of torque make it suitable for heavy-duty applications such as conveyor systems, pumps, and fans. Its totally enclosed non-ventilated design ensures safe operation in harsh conditions, while its continuous duty cycle and NEMA Design A rating ensure reliable performance. Perfect for industries such as manufacturing, oil and gas, and material handling, this motor delivers high efficiency and long lifespan.
Top product features:
- Three-phase operation for efficient power distribution
- Totally enclosed non-ventilated design for reduced maintenance and improved safety
- Continuous duty cycle for reliable operation in demanding applications
Top product applications:
- Industrial Automation
- High-precision manufacturing equipment
- Material handling systems
Vector Motor, Three Phase, Motor Design Three-Phase, 2 HP, Nameplate RPM 1,750, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 5.6/2.8 A, 145 Frame, Torque 543 ft-lb, Max. Speed 1,750 RPM, Speed Range 5,000:1, 60 Hz Hz, Max. Operating Frequency 60 Hz, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class F, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 13.50
- Package Height: 12.50
- Package Weight: 35.00
Product info last updated on February 13, 2026 10:56pm UTC
Category: Motors
