Motor, 3PH, 2HP, 208-230/460V, SS TC FTL MPN:WDS2P1ACR
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0403320

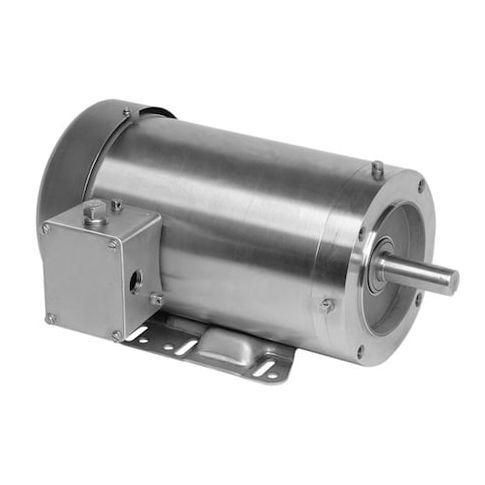

Motor, 3PH, 2HP, 208-230/460V, SS TC FTL
This 2 HP, 3-phase motor is designed for heavy-duty applications, including washdown environments. Its totally enclosed fan-cooled design protects against dust and water, making it ideal for use in food processing, pharmaceutical, and chemical plants. The motor's continuous duty cycle and 1.15 service factor ensure reliable operation in demanding conditions. The 145TC frame motor is suitable for use at 208V, but not at 200V, and operates at 3,505 RPM. Its compact size and robust construction make it a versatile solution for a wide range of industrial applications, including conveyor systems, pumps, and mixers.
Top product features:
- Totally Enclosed Fan Cooled design for increased durability and protection
- Three-Phase operation for efficient power usage and reduced energy consumption
- Continuous Duty Cycle for reliable and uninterrupted operation
Top product applications:
- Food Processing Equipment
- High-Temperature Cleaning Equipment
- Pharmaceutical Manufacturing Machinery
Washdown Motor, Three Phase, Motor Design Three-Phase, 2 hp HP, Nameplate RPM 3,505 RPM, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 5.3-4.9/2.4 A, 145TC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 40 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.50
- Package Width: 12.50
- Package Height: 19.50
- Package Weight: 50.00
Product info last updated on April 10, 2026 10:18am UTC
Category: Motors
