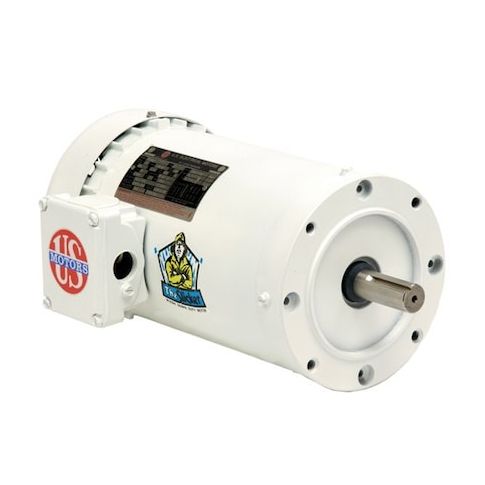

WashdownMotor, 2hp, 145TC, 208-230/460VAC MPN:WD2P2A14CR
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0403214
WashdownMotor, 2hp, 145TC, 208-230/460VAC
This 2HP three-phase motor is designed for high-efficiency washdown applications, featuring a totally enclosed fan-cooled (TEFC) design and a continuous duty cycle. Its compact 145TC frame makes it ideal for tight spaces, while its CW/CCW rotation allows for flexible installation. With a nameplate RPM of 1,800 and a service factor of 1, this motor provides reliable performance in a variety of applications, including food processing, pharmaceutical, and chemical manufacturing. Its use in these industries can improve productivity, reduce downtime, and meet the demands of high-pressure washdown environments.
Top product features:
- Totally Enclosed Fan Cooled motor design for improved durability and reduced maintenance
- Three-Phase motor design for efficient power distribution and reduced energy losses
- Continuous duty cycle for uninterrupted operation and increased productivity
Top product applications:
- Food Processing Equipment
- Washdown environments in chemical plants
- Industrial laundry equipment
Washdown Motor, Three Phase, Motor Design Three-Phase, 2 hp HP, Nameplate RPM 1,800 RPM, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 6.2-6.0/3.0 A, 145TC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type C-Face
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 12.00
- Package Height: 12.00
- Package Weight: 26.00
Product info last updated on January 21, 2026 3:44pm UTC
Category: Motors
