Three-Phase Motor, 25 HP, 286T Frame, 460V Voltage, 1, 765 Nameplate RPM 28 1/4 in Overall Length MPN:U25L9C
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0403171
Three-Phase Motor, 25 HP, 286T Frame, 460V Voltage, 1, 765 Nameplate RPM 28 1/4 in Overall Length

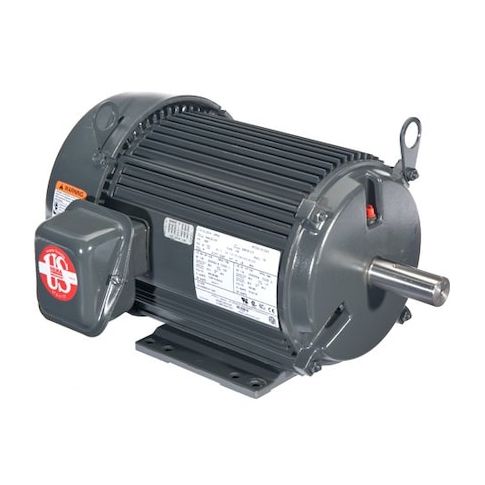

This 25 HP three-phase motor from US Motors is designed for heavy-duty applications requiring reliable and efficient power. With a nameplate RPM of 1,765 and a frame size of 286T, this motor is well-suited for use in industrial settings such as manufacturing, processing, and material handling facilities. The totally enclosed fan cooled design and ball bearings ensure long motor life and smooth operation. Its high service factor of 1.15 and nominal efficiency of 87.5 percent make it an excellent choice for applications where high power is required, such as in pumps, fans, and conveyor systems.
Top product features:
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings
- CW/CCW Motor Shaft Rotation
Top product applications:
- Heavy industrial manufacturing
- Pump drives in water treatment plants
- Large-scale material handling equipment
Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 25 HP, Nameplate RPM 1,765, Frame 286T, Voltage 460V, 60 Hz Hz, Three Phase, Full Load Amps 30.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Aluminum, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 87.5 Percent, 1,701-1,800, CSA Certified, UR
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 29.50
- Package Width: 22.50
- Package Height: 19.50
- Package Weight: 262.00
Product info last updated on January 31, 2026 8:22pm UTC
Category: Motors
