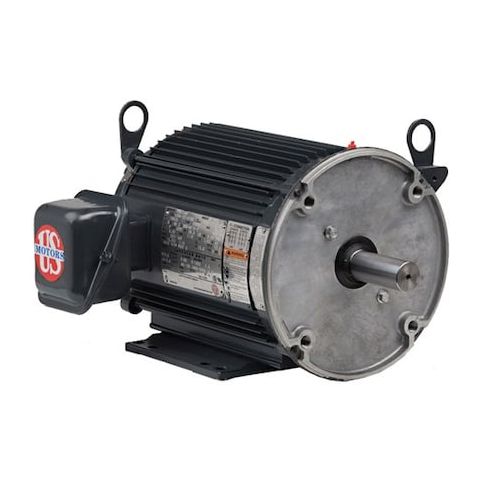

3-Phase Vector Motor, 20 HP, 256 Frame, 230/460V AC Voltage, 1, 780 Nameplate RPM MPN:UN20T2BC
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0402812
3-Phase Vector Motor, 20 HP, 256 Frame, 230/460V AC Voltage, 1, 780 Nameplate RPM
This 20 HP 3-Phase Vector Motor is designed for high-performance applications, offering a speed range of 5,000:1 and a maximum speed of 1,780 RPM. Its compact 256 frame size makes it ideal for use in tight spaces, while its totally enclosed non-ventilated design provides protection from dust and moisture. Suitable for continuous duty cycles, this motor is perfect for industrial applications such as conveyor systems, pumps, and fans. With a high torque output of 403 ft-lb, it can handle demanding tasks with ease, making it a reliable choice for manufacturers and facilities looking to increase efficiency and productivity.
Top product features:
- Three-phase design for efficient power distribution
- Totally Enclosed Non-Ventilated (TEFC) enclosure for protection in harsh environments
- Continuous duty cycle for reliable operation in demanding applications
Top product applications:
- Industrial Automation Systems
- Pump and Blower Applications
- Water and Wastewater Treatment Plants
Vector Motor, Three Phase, Motor Design Three-Phase, 20 HP, Nameplate RPM 1,780, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 50.0/24.8 A, 256 Frame, Torque 403 ft-lb, Max. Speed 1,780 RPM, Speed Range 5,000:1, 60 Hz Hz, Max. Operating Frequency 60 Hz, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class F, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 29.50
- Package Width: 22.50
- Package Height: 19.50
- Package Weight: 266.00
Product info last updated on February 26, 2026 11:01pm UTC
Category: Motors
