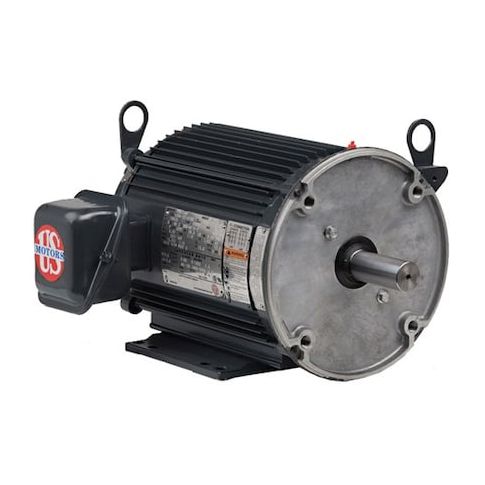

3-Phase Vector Motor, 1 HP, 143 Frame, 230/460V AC Voltage, 1, 755 Nameplate RPM MPN:UN1T2BC
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0402499
3-Phase Vector Motor, 1 HP, 143 Frame, 230/460V AC Voltage, 1, 755 Nameplate RPM
The US Motors 3-Phase Vector Motor is a high-performance solution for demanding applications. With a 1 HP rating and 1,755 nameplate RPM, this motor delivers efficient and reliable operation. Its 5,000:1 speed range and 595 ft-lb torque make it ideal for applications requiring high power and precision control. Suitable for use in industrial settings, the motor features a totally enclosed non-ventilated design and a maximum ambient temperature of 104 degrees F. Perfect for applications such as conveyor systems, pumps, and machinery, this motor provides continuous duty operation and is built to withstand the demands of heavy use.
Top product features:
- Three-phase vector motor design
- Totally enclosed non-ventilated motor enclosure
- Continuous duty cycle operation
Top product applications:
- Pumps
- Conveyors
- Fans
Vector Motor, Three Phase, Motor Design Three-Phase, 1 HP, Nameplate RPM 1,755, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 3.2/1.6 A, 143 Frame, Torque 595 ft-lb, Max. Speed 1,755 RPM, Speed Range 5,000:1, 60 Hz Hz, Max. Operating Frequency 60 Hz, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class F, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 13.50
- Package Height: 12.50
- Package Weight: 30.00
Product info last updated on January 20, 2026 12:05am UTC
Category: Motors
