Motor, 3PH, 1HP, 1800, 208-230/460V, PF 56HC MPN:WDP1P2AHC
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0402359
Motor, 3PH, 1HP, 1800, 208-230/460V, PF 56HC

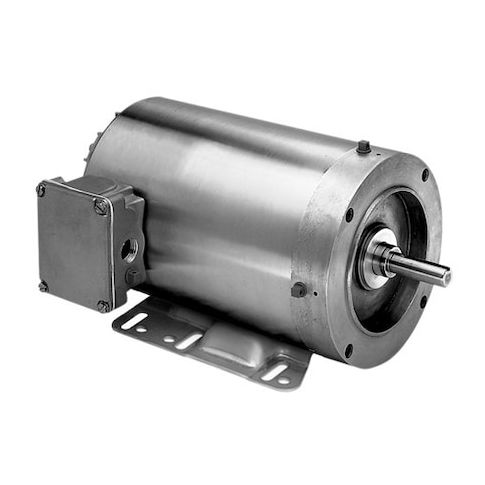

This rugged 1HP, 3-phase motor from US Motors is designed for demanding washdown applications, featuring a totally enclosed non-ventilated (TEF) enclosure to withstand harsh environments. With a nameplate RPM of 1,800 and a service factor of 1.15, this motor delivers reliable performance in continuous duty cycles. Its compact design and C-face mounting make it easy to integrate into existing systems. Suitable for use at 208-460V, this motor is perfect for applications in food processing, pharmaceuticals, and other industries where high sanitation standards are crucial. Its durable construction ensures long-lasting operation and reduced maintenance costs.
Top product features:
- Totally Enclosed Non-Ventilated Enclosure protects the motor from dust and water
- Continuous Duty Cycle allows for uninterrupted operation
- NEMA Design B meets high efficiency and reliability standards
Top product applications:
- Food Processing Equipment
- Pump and Compressor Applications
- Water Treatment Plants
Washdown Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,800 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 3.5-3.4/1.7 A, 56 Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated, Motor Mounting Type C-Face
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 50 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 12.00
- Package Height: 12.00
- Package Weight: 31.00
Product info last updated on April 11, 2026 3:57am UTC
Category: Motors
