Motor, 3PH, 1HP, 208-230/460V, WD C-face MPN:WD1P2A14CR
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0402270
Motor, 3PH, 1HP, 208-230/460V, WD C-face

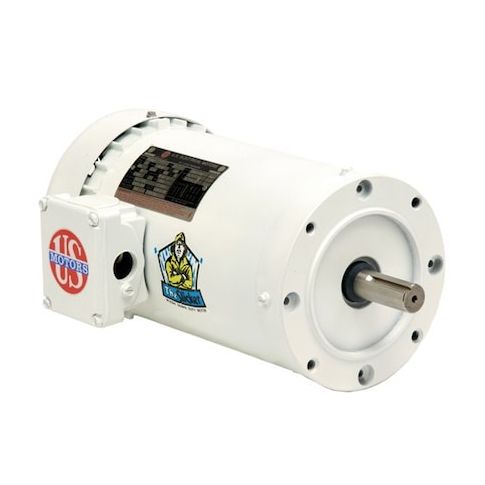

This three-phase 1HP motor from US Motors is designed for demanding washdown applications, with a totally enclosed non-ventilated (TEF) enclosure that protects against harsh environments. Its continuous duty cycle and NEMA Design B rating ensure reliable operation in a variety of industrial settings. Suitable for use at 208-230/460V, this motor offers flexibility and efficiency. Ideal for applications such as food processing, pharmaceutical manufacturing, and chemical processing, it provides a cost-effective solution for high-traffic areas that require frequent cleaning and sanitizing. Its compact size and durable design make it an excellent choice for industrial washdown applications.
Top product features:
- Three-phase operation
- Totally enclosed non-ventilated enclosure
- Continuous duty cycle
Top product applications:
- Food Processing Equipment
- Pump or Compressor for Chemical Plant
- Packaging Machinery
Washdown Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,800 RPM, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 3.4-3.3/1.8 A, 143TC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 12.00
- Package Height: 12.00
- Package Weight: 26.00
Product info last updated on January 20, 2026 12:15am UTC
Category: Motors
