Motor, 3PH, 10HP, 3600, 208-230/460V, SS TC MPN:WDS10P1AC
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0401519
Motor, 3PH, 10HP, 3600, 208-230/460V, SS TC

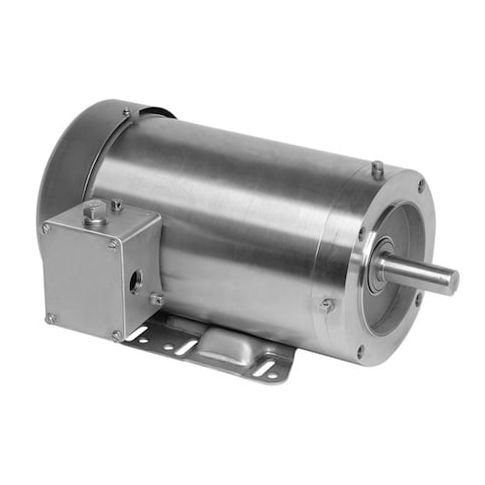

This 10HP, 3-phase motor from US Motors is designed for demanding applications, including washdown environments. Its totally enclosed fan-cooled design provides reliable performance in harsh conditions, while its NEMA Design B rating ensures efficient operation. With a continuous duty cycle and motor service factor of 1.15, this motor can handle heavy loads and maintain performance over time. Suitable for applications such as food processing, chemical handling, and pharmaceutical manufacturing, this motor offers a durable and reliable solution for industries that require high-performance equipment. Its compact size and robust design make it an ideal choice for space-constrained facilities.
Top product features:
- Totally Enclosed Fan Cooled design for improved protection from dust and water
- Continuous duty cycle for uninterrupted operation
- NEMA Design B for high reliability and resistance to harsh environments
Top product applications:
- Food Processing Equipment
- Water Treatment Plants
- Automotive Manufacturing
Washdown Motor, Three Phase, Motor Design Three-Phase, 10 hp HP, Nameplate RPM 3,515 RPM, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 26.1-23.1/11.6 A, 215 Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 40 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 26.50
- Package Width: 16.50
- Package Height: 15.00
- Package Weight: 145.00
Product info last updated on April 1, 2026 8:20am UTC
Category: Motors
