Motor, 3PH, 10HP, 1800, 208-230/460V, WD FTL MPN:WD10P2DCR
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0401351

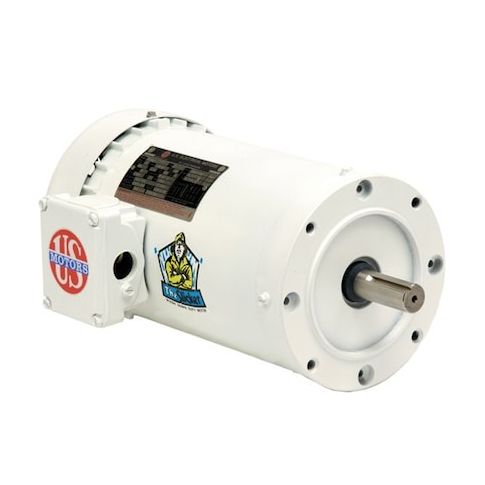

Motor, 3PH, 10HP, 1800, 208-230/460V, WD FTL
This 10 horsepower, three-phase motor is designed for demanding applications such as high-pressure washdown systems, chemical processing, and other harsh environments. Its Totally Enclosed Fan Cooled (TEFC) design and Class F insulation ensure reliable operation in temperatures up to 40 degrees C. With a continuous duty cycle and NEMA Design B efficiency, this motor provides consistent performance and energy savings. Suitable for use in 208-230/460V systems, it's ideal for applications in food processing, manufacturing, and other industries where high cleanliness and reliability are critical. Its compact size and robust construction make it a versatile solution for a wide range of applications.
Top product features:
- Three Phase Design
- Totally Enclosed Fan Cooled Enclosure
- Continuous Duty Cycle
Top product applications:
- Food Processing Equipment
- Pumps and Pump Systems
- Washdown and Sanitary Equipment
Washdown Motor, Three Phase, Motor Design Three-Phase, 10 hp HP, Nameplate RPM 1,800 RPM, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 26.5-23.9/11.9 A, 215TC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 40 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.88
- Package Width: 14.50
- Package Height: 28.50
- Package Weight: 128.00
Product info last updated on February 26, 2026 8:12pm UTC
Category: Motors
