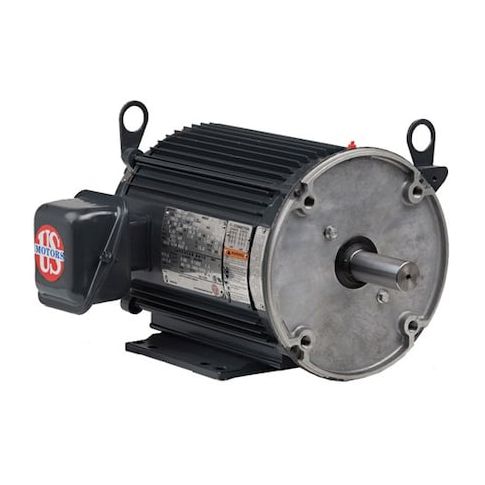

3-Phase Vector Motor, 10 HP, 256 Frame, 230/460V AC Voltage, 1, 185 Nameplate RPM MPN:UN10T3BC
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0401123
3-Phase Vector Motor, 10 HP, 256 Frame, 230/460V AC Voltage, 1, 185 Nameplate RPM
This high-performance 3-Phase Vector Motor is ideal for demanding applications in industries such as manufacturing, oil and gas, and food processing. With a 10 HP rating and 1,185 nameplate RPM, it provides reliable and efficient power for heavy-duty use. Its 256 frame design and totally enclosed non-ventilated enclosure ensure durability and protection from harsh environments. The motor's speed range of 5,000:1 and continuous duty cycle make it suitable for applications requiring precise control and high torque output. Its compact size and robust design make it a great solution for space-constrained facilities and high-volume production lines.
Top product features:
- Three-phase operation allows for efficient and balanced power distribution.
- Totally enclosed non-ventilated design provides protection from environmental contaminants.
- Speed range of 5,000:1 enables precise control over motor speed.
Top product applications:
- Pumps and water treatment systems
- Industrial conveyor systems
- Centrifugal separators and decanters
Vector Motor, Three Phase, Motor Design Three-Phase, 10 HP, Nameplate RPM 1,185, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 25.3/12.7 A, 256 Frame, Torque 366 ft-lb, Max. Speed 1,185 RPM, Speed Range 5,000:1, 60 Hz Hz, Max. Operating Frequency 60 Hz, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class F, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 45 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 29.50
- Package Width: 22.50
- Package Height: 19.50
- Package Weight: 266.00
Product info last updated on April 1, 2026 8:06am UTC
Category: Motors
