Motor, 3PH, 1/2HP, 1800, 208-230/460V, WD 56C MPN:WD12S2ACR
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0400590

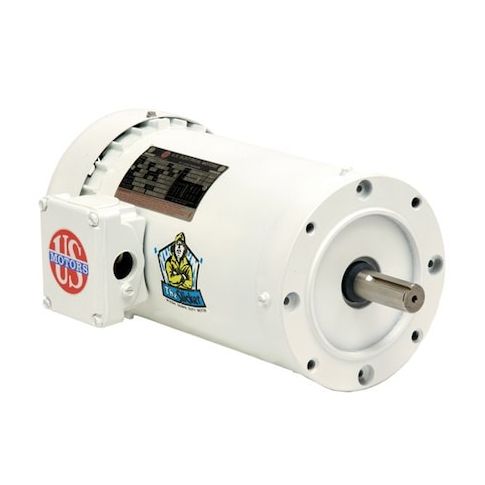

Motor, 3PH, 1/2HP, 1800, 208-230/460V, WD 56C
This 1/2 HP, 3-phase washdown motor from US Motors is designed for use in harsh environments, featuring a totally enclosed non-ventilated enclosure and a NEMA Design B rating. Suitable for continuous operation at temperatures up to 40°C, it's ideal for applications such as food processing, pharmaceutical manufacturing, and chemical plants. With a 1.15 service factor and Class F insulation, this motor provides reliable performance and long lifespan. Its compact size and ease of installation make it a convenient choice for a variety of industrial applications.
Top product features:
- Totally Enclosed Non-Ventilated motor enclosure design for protection against environmental factors
- Operates at 1,800 RPM for efficient performance
- Usable at 208V for flexibility in power supply applications
Top product applications:
- Water treatment plants
- Food processing facilities
- Petrochemical plants
Washdown Motor, Three Phase, Motor Design Three-Phase, 1/2 hp HP, Nameplate RPM 1,800 RPM, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 1.9-1.8/0.9 A, 56 Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 12.00
- Package Height: 12.00
- Package Weight: 39.00
Product info last updated on February 25, 2026 12:41pm UTC
Category: Motors
