Motor, 3PH, 1/2HP, 1200, 208-230/460V, PF MPN:WDP12S3DCR
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0400441

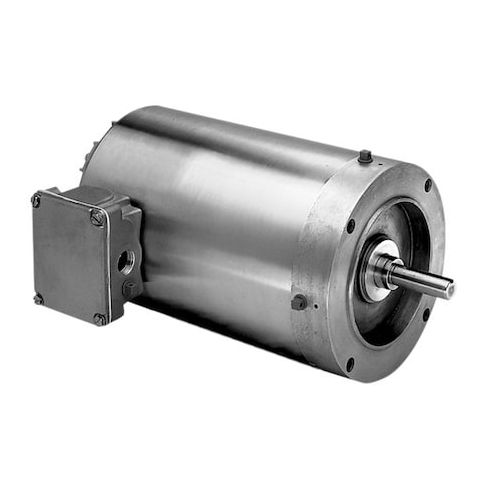

Motor, 3PH, 1/2HP, 1200, 208-230/460V, PF
This high-performance 1/2 HP, 3-phase washdown motor from US Motors is designed for demanding applications in harsh environments. With a nameplate RPM of 1,200 and a continuous duty cycle, it's ideal for use in food processing, pharmaceutical, and other industries where cleanliness and reliability are paramount. Its totally enclosed non-ventilated design and Class F insulation ensure long motor life and resistance to high temperatures. The motor's compact size and C-face mounting make it easy to integrate into existing systems. With a 1.15 service factor and 15-day lead time, this motor is a reliable choice for applications requiring high performance and efficiency.
Top product features:
- Three-phase design
- Totally enclosed non-ventilated enclosure
- Continuous duty cycle
Top product applications:
- Pump applications requiring a 1/2 HP motor
- Water treatment plants needing a reliable washdown motor
- Food processing facilities requiring a totally enclosed non-ventilated motor
Washdown Motor, Three Phase, Motor Design Three-Phase, 1/2 hp HP, Nameplate RPM 1,200 RPM, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 2.2/1.1 A, 56 Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated, Motor Mounting Type C-Face
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 12.00
- Package Height: 12.00
- Package Weight: 32.00
Product info last updated on March 6, 2026 3:23am UTC
Category: Motors
