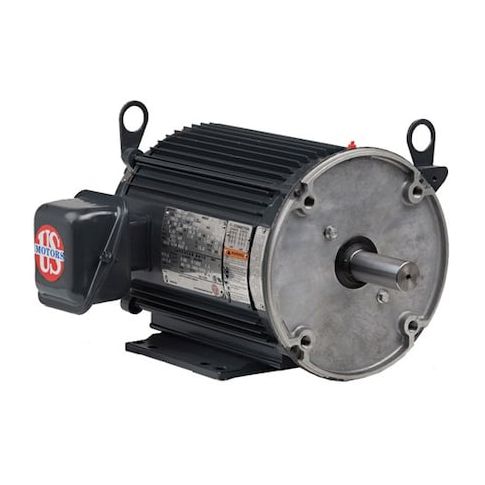

3-Phase Vector Motor, 1 1/2 HP, 145 Frame, 230/460V AC Voltage, 1, 760 Nameplate RPM MPN:UN32T2BC
Discount: See in Cart
Out Of Stock
Out Of Stock
SKU
510-G0400082
3-Phase Vector Motor, 1 1/2 HP, 145 Frame, 230/460V AC Voltage, 1, 760 Nameplate RPM
Vector Motor, Three Phase, Motor Design Three-Phase, 1 1/2 HP, Nameplate RPM 1,760, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 4.7/2.3 A, 145 Frame, Torque 665 ft-lb, Max. Speed 1,760 RPM, Speed Range 5,000:1, 60 Hz Hz, Max. Operating Frequency 60 Hz, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class F, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 13.50
- Package Height: 12.50
- Package Weight: 35.00
Product info last updated on March 1, 2026 8:55pm UTC
Category: Motors
