Motor, 3PH, 5HP, 1800, 208-230/460V, WD MPN:WD5P2D
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0398043
Motor, 3PH, 5HP, 1800, 208-230/460V, WD

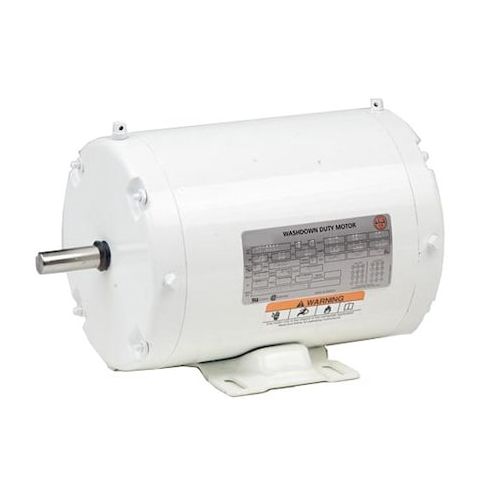

This 5 horsepower, three-phase motor is designed for heavy-duty applications in washdown environments. Its totally enclosed fan-cooled design and NEMA Design B rating ensure reliable operation in harsh conditions. With a continuous duty cycle and 1.15 service factor, this motor can handle demanding tasks. Its compact size and light weight make it ideal for use in food processing, pharmaceutical, and chemical plants, as well as in other industries where cleanliness and efficiency are crucial. The motor's 1,755 RPM and 13.5-12.5/6.2 amp rating provide optimal performance in a variety of applications.
Top product features:
- Three-phase operation
- Totally enclosed fan-cooled design
- Continuous duty cycle
Top product applications:
- Food Processing Machinery
- High-Temperature Cleaning Equipment
- Automated Laundry Systems
Washdown Motor, Three Phase, Motor Design Three-Phase, 5 hp HP, Nameplate RPM 1,755 RPM, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 13.5-12.5/6.2 A, 184 Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 14.50
- Package Height: 15.00
- Package Weight: 76.00
Product info last updated on March 12, 2026 9:23pm UTC
Category: Motors
