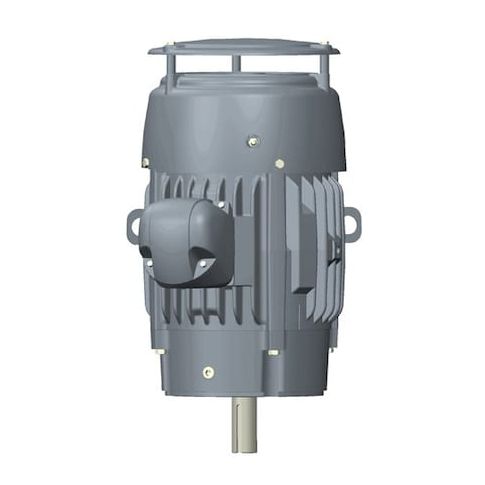

Three-Phase Motor, 50 HP, 326TSC Frame, 380/460V AC Voltage, 3, 550 Nameplate RPM MPN:CD50P1FSCR
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0397824
Three-Phase Motor, 50 HP, 326TSC Frame, 380/460V AC Voltage, 3, 550 Nameplate RPM
The US Motors 50 HP 326TSC three-phase motor is a reliable and efficient solution for industrial applications. Designed for totally enclosed fan cooled (TEFC) environments, this motor operates at 3,550 nameplate RPM and 380/460V AC voltage, with a service factor of 1.15. Its rigid base mounting and CW/CCW shaft rotation provide flexibility in installation. The motor's 93% nominal efficiency and CSA certification make it a cost-effective choice for applications such as pumps, fans, and conveyor systems. With a maximum ambient temperature of 40°C, this motor can handle demanding industrial environments, making it an ideal choice for factories, manufacturing plants, and other industrial settings.
Top product features:
- Three-Phase Motor Design
- Totally Enclosed Fan Cooled Motor Enclosure
- CW/CCW Motor Shaft Rotation
Top product applications:
- Pumps and compressors for industrial applications
- Industrial machinery such as conveyor belts and textile machines
- Fans and blowers for ventilation and air circulation systems
Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 50 HP, Nameplate RPM 3,550, Frame 326TSC, Voltage 380/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 56.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 93 Percent, 3,001-3,600, CSA Certified, ENERGY cURus
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 40 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 30.00
- Package Width: 36.00
- Package Height: 45.00
- Package Weight: 625.00
Product info last updated on March 22, 2026 12:35am UTC
Category: Motors
