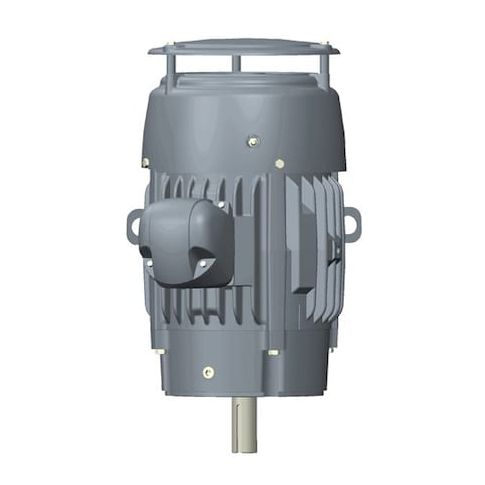

Three-Phase Motor, 40 HP, 324TSC Frame, 380/460V AC Voltage, 1, 780 Nameplate RPM MPN:CD40P2FSCR
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0397203
Three-Phase Motor, 40 HP, 324TSC Frame, 380/460V AC Voltage, 1, 780 Nameplate RPM
This 40 HP three-phase motor is designed for heavy-duty applications in various industries. With a nameplate RPM of 1,780 and a nominal efficiency of 94.1 percent, it provides reliable and energy-efficient operation. Suitable for use in environments with a maximum ambient temperature of 40 degrees C, this motor features a totally enclosed fan-cooled design and a rigid base mounting type for secure installation. Ideal for applications such as manufacturing, pumping, and HVAC systems, this motor is CSA certified and meets the requirements for use in North America. Its compact size and high performance make it a valuable addition to any industrial operation.
Top product features:
- Three-phase design for efficient power transmission
- Totally enclosed fan cooled motor enclosure for reliable operation in harsh environments
- CW/CCW motor shaft rotation for flexibility in installation and application
Top product applications:
- Pumps and other machinery requiring high power and efficiency
- Fans and blowers for industrial ventilation systems
- Conveyors and other material handling equipment in manufacturing environments
Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 40 HP, Nameplate RPM 1,780, Frame 324TSC, Voltage 380/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 46.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 94.1 Percent, 1,701-1,800, CSA Certified, ENERGY cURus
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 40 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 30.00
- Package Width: 36.00
- Package Height: 45.00
- Package Weight: 600.00
Product info last updated on March 1, 2026 10:51am UTC
Category: Motors
