Motor, 3PH, 3HP, 1800, 208-230/460V, WD MPN:WD3P2D
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0396549

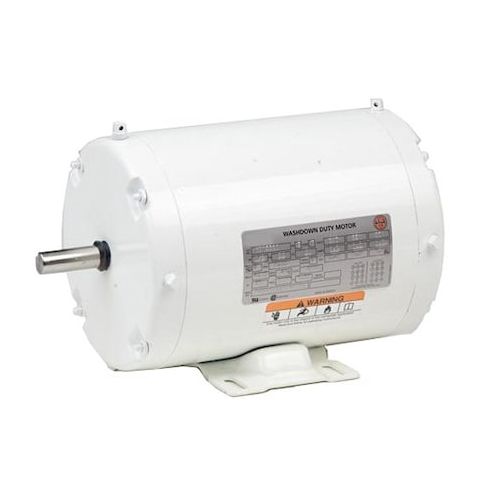

Motor, 3PH, 3HP, 1800, 208-230/460V, WD
This 3HP, 1800 RPM, 3-phase washdown motor from US Motors is designed for heavy-duty applications in harsh environments. With a NEMA Design B rating and totally enclosed fan-cooled design, it provides reliable operation in demanding conditions. Suitable for use in 208-230/460V systems, this motor offers a high service factor of 1.15, ensuring efficient performance and extended lifespan. Ideal for use in food processing, pharmaceutical, and chemical industries, this motor provides a durable and low-maintenance solution for applications requiring continuous duty cycles. Its compact design and easy installation make it a convenient choice for a wide range of washdown applications.
Top product features:
- Three-phase operation allows for efficient use of electrical power
- Totally Enclosed Fan Cooled design provides a safe and reliable operating environment
- Continuous duty cycle enables long-term operation without interruption
Top product applications:
- High-speed laundry equipment
- Industrial washing machines
- Commercial dishwashers
Washdown Motor, Three Phase, Motor Design Three-Phase, 3 hp HP, Nameplate RPM 1,765 RPM, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 8.2-7.6/3.8 A, 182 Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 14.50
- Package Height: 15.00
- Package Weight: 55.00
Product info last updated on February 13, 2026 10:01am UTC
Category: Motors
