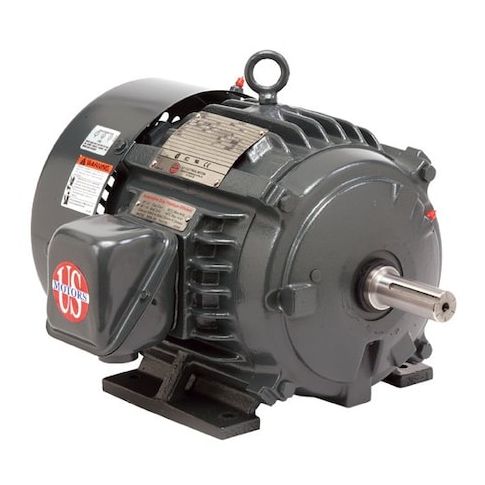

Three-Phase Motor, 20 HP, 286T Frame, 575V Voltage, 1, 180 Nameplate RPM 27 in Overall Length MPN:H20P3G
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0394193
Three-Phase Motor, 20 HP, 286T Frame, 575V Voltage, 1, 180 Nameplate RPM 27 in Overall Length
This high-performance 20 HP three-phase motor is designed for demanding industrial applications. With a nameplate RPM of 1,180 and a nominal efficiency of 91.7%, it provides reliable power for heavy-duty use. Its totally enclosed fan-cooled design and cast iron frame ensure durability and longevity. Suitable for use in a variety of industries, including manufacturing, oil and gas, and food processing, this motor can handle the toughest tasks. Its CSA certification and high service factor make it an excellent choice for applications requiring high reliability and performance. Ideal for applications such as pumps, fans, and compressors.
Top product features:
- Three-phase motor design
- Totally enclosed fan-cooled motor enclosure design
- Ball motor bearings
Top product applications:
- Industrial automation and manufacturing processes
- Pumping systems and water treatment plants
- Power generation and transmission infrastructure
Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 20 HP, Nameplate RPM 1,180, Frame 286T, Voltage 575V, 60 Hz Hz, Three Phase, Full Load Amps 19.7 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91.7 Percent, 1,101-1,200, CSA Certified, ENERGY cURus
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 40 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 29.50
- Package Width: 22.50
- Package Height: 19.50
- Package Weight: 400.00
Product info last updated on March 28, 2026 1:53pm UTC
Category: Motors
