3-Phase Motor, 1 HP, 56J Frame, 115/208-230V AC Voltage, 3, 450/2, 850 Nameplate RPM MPN:EE516B
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0393703
3-Phase Motor, 1 HP, 56J Frame, 115/208-230V AC Voltage, 3, 450/2, 850 Nameplate RPM

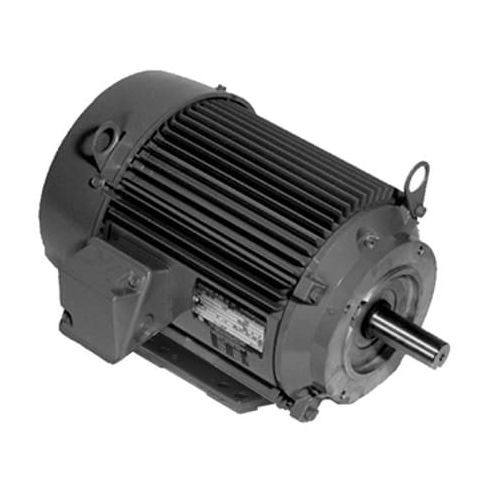

This 1 HP, 3-phase motor from US Motors is a reliable and efficient solution for a variety of applications, including pump systems. With a totally enclosed fan-cooled design, it operates in harsh environments and provides long-lasting performance. The double shielded bearings offer additional protection against wear and tear. Suitable for continuous duty cycles, this motor can handle high usage in industrial settings. Its compact 56J frame makes it easy to integrate into existing systems. With a lead time of 15 days, this motor is a great option for businesses looking to upgrade their equipment.
Top product features:
- Totally Enclosed Fan-Cooled design provides a safe and protected environment for the motor.
- Double Shields on the motor bearings provide additional protection against wear and tear.
- Ball bearings are used in the motor design for smooth and quiet operation.
Top product applications:
- Pump
- Totally Enclosed Fan-Cooled Motor
- Industrial Equipment
Motor, Bearing Protection Double Shields, Body Dia. 6.5 in, Bolt Circle Dia. 5 7/8 in, CC Number CC030A, Duty Cycle Continuous, Frame 56J, Hz 60/50, Full Load Amps 3.5-3.4/1.7, Full Load Amps @ 50Hz 3.5-3.4/1.7, HP 1, HP @ 50Hz 1, Ins. Class B, Length Less Shaft 8 5/8 in, Max. Ambient Temp. 40 Degrees C, Max. SF Amps 4.4-4.2/2.1, Motor Application Pump, Motor Bearings Ball, Motor Design Three-Phase, Motor Enclosure Design Totally Enclosed Fan-Cooled
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.50
- Package Width: 11.00
- Package Height: 11.00
- Package Weight: 29.00
Product info last updated on January 31, 2026 7:37pm UTC
Category: Motors
