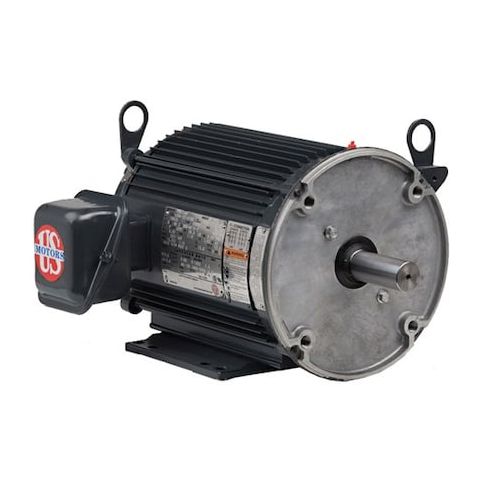

3-Phase Vector Motor, 1 HP, 145 Frame, 230/460V AC Voltage, 1, 150 Nameplate RPM MPN:UN1T3BC
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0393353
3-Phase Vector Motor, 1 HP, 145 Frame, 230/460V AC Voltage, 1, 150 Nameplate RPM
This 3-Phase Vector Motor from US Motors is designed for heavy-duty applications requiring high torque and efficiency. With a 1 HP rating and 1,150 nameplate RPM, it's ideal for use in industrial settings where continuous operation is required. The motor's speed range of 5,000:1 and 390 ft-lb of torque make it suitable for applications such as pumps, fans, and conveyor systems. Its totally enclosed non-ventilated design provides protection from environmental factors, while its NEMA Design A rating ensures reliable operation in harsh conditions. This motor is a reliable choice for industries seeking high performance and efficiency.
Top product features:
- Three-phase vector motor design for efficient operation
- Totally enclosed non-ventilated enclosure for dust and moisture protection
- Speed range of 5,000:1 for precise control and flexibility
Top product applications:
- Industrial Automation
- Manufacturing Process Control
- Material Handling Equipment
Vector Motor, Three Phase, Motor Design Three-Phase, 1 HP, Nameplate RPM 1,150, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 3.7/1.8 A, 145 Frame, Torque 390 ft-lb, Max. Speed 1,150 RPM, Speed Range 5,000:1, 60 Hz Hz, Max. Operating Frequency 60 Hz, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class F, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 40 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 13.50
- Package Height: 12.50
- Package Weight: 35.00
Product info last updated on April 9, 2026 10:46pm UTC
Category: Motors
