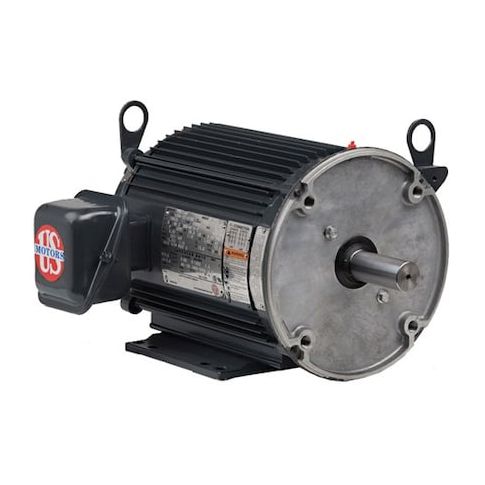

3-Phase Vector Motor, 10 HP, 215 Frame, 230/460V AC Voltage, 1, 775 Nameplate RPM MPN:UN10T2BC

Vector Motor, Three Phase, Motor Design Three-Phase, 10 HP, Nameplate RPM 1,775, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 25.3/12.7 A, 215 Frame, Torque 519 ft-lb, Max. Speed 1,775 RPM, Speed Range 5,000:1, 60 Hz Hz, Max. Operating Frequency 60 Hz, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class F, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated
