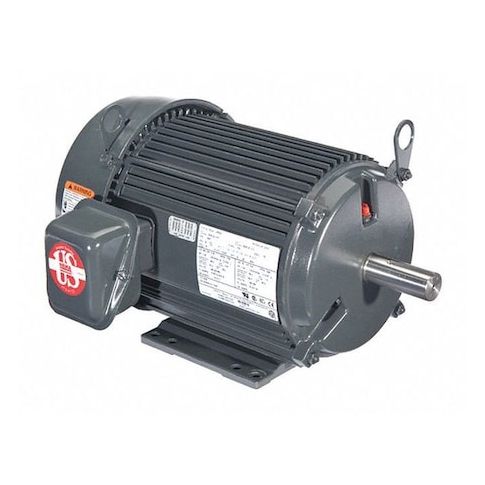

Three-Phase General Purpose Motor, 1 1/2 HP, 145T Frame, 575V AC Voltage, 1755 Nameplate RPM MPN:U32P2G
Three-Phase General Purpose Motor, 1 1/2 HP, 145T Frame, 575V AC Voltage, 1755 Nameplate RPM
This 1.5 HP three-phase general purpose motor from US Motors is designed for a wide range of industrial applications, including manufacturing, processing, and material handling. With its totally enclosed fan cooled motor enclosure, it provides reliable operation in harsh environments. The motor's 86.5% nominal efficiency helps minimize energy costs and reduce environmental impact. Suitable for use in facilities with high ambient temperatures up to 40°C, this motor is ideal for applications such as pumps, fans, and conveyor systems. Its rigid base mounting and CW/CCW rotation options make it easy to integrate into existing systems.
Top product features:
- Three-Phase General Purpose Motor is designed for totally enclosed fan cooled motor enclosure for improved cooling and reduced maintenance.
- Motor has a rigid base mounting type for secure and stable installation.
- Motor features ball bearings for smooth and long-lasting operation.
Top product applications:
- Pump applications
- Conveyor systems
- Industrial fans
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1 1/2 HP, Nameplate RPM 1755, Frame 145T, Voltage 575V AC, 60 Hz Hz, Three Phase, Full Load Amps 1.7 A A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, 1701-1800, CE, CSA
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.40
- Package Width: 12.40
- Package Height: 9.00
- Package Weight: 42.60
Product info last updated on February 1, 2026 1:06am UTC
Category: Motors
