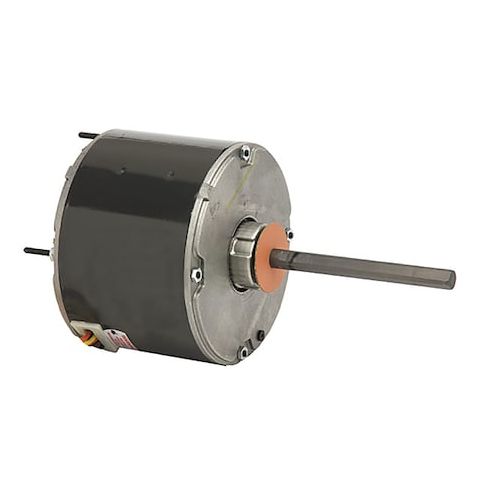

Condenser Fan Motor, 1/3 hp MPN:8670
Condenser Fan Motor, 1/3 hp
This 1/3 hp condenser fan motor from US Motors is a reliable and efficient choice for a variety of applications, including residential and commercial HVAC systems. With a permanent split capacitor design and a single-phase motor, it provides smooth and quiet operation. The motor's 1,075 RPM nameplate speed and 2-speed design make it suitable for a range of condenser fan applications. Its compact 48Y frame and totally enclosed air-over design make it easy to install and maintain in tight spaces. With a continuous duty cycle and thermal protection, this motor is built to last and provide reliable performance in demanding environments.
Top product features:
- Permanent Split Capacitor motor design provides efficient operation
- Totally Enclosed Air-Over motor enclosure protects against environmental factors
- Continuous duty cycle allows for uninterrupted operation
Top product applications:
- Air Conditioning Systems
- HVAC Units
- Commercial Refrigeration Systems
Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/3 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 2, Voltage 208-230V AC, 2.2 A Full Load Amps, 48Y Frame, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.50
- Package Width: 7.00
- Package Height: 7.00
- Package Weight: 15.30
Product info last updated on February 11, 2026 2:47pm UTC
Category: Motors
