Capacitor-Start General Purpose Motor, 1 hp HP, 56 Frame, 100-120V AC Voltage MPN:T1C2Z
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0201086

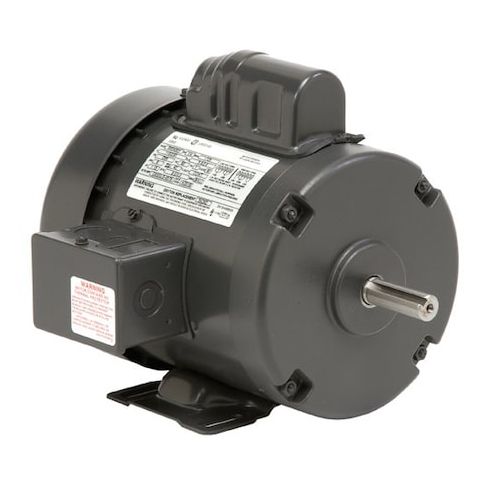

Capacitor-Start General Purpose Motor, 1 hp HP, 56 Frame, 100-120V AC Voltage
This 1 hp Capacitor-Start General Purpose Motor is ideal for a variety of applications, including industrial equipment, pumps, and conveyor systems. Its single-phase design and capacitor-start motor make it a reliable choice for continuous operation in temperatures up to 40°C. The motor's totally enclosed fan-cooled design ensures efficient cooling and reduced maintenance. With a usable voltage range of 100-120V AC and 208V AC, this motor can be easily integrated into existing systems. Its compact 56 frame size makes it perfect for space-constrained applications. The motor's durable design and long lifespan make it a cost-effective solution for a wide range of industrial and commercial uses.
Top product features:
- Totally Enclosed Fan Cooled design
- Motor Shaft Rotation is CW/CCW
- Capacitor-Start motor design for efficient operation
Top product applications:
- Industrial conveyor systems
- Pumps and water treatment systems
- Fans and blowers in HVAC applications
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 100-120V AC, Full Load Amps 11.0-9.2/5.5-4.7 A, 56 Frame, Usable @ 208V Usable at 208V, Usable @ 200V Usable at 200V, Hz 60/50 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.20
- Package Width: 12.00
- Package Height: 12.00
- Package Weight: 25.00
Product info last updated on February 1, 2026 12:26pm UTC
Category: Motors
