Capacitor-Start General Purpose Motor, 1 hp HP, 56C Frame, 115/208-230V AC Voltage MPN:T1C1JC
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0201016

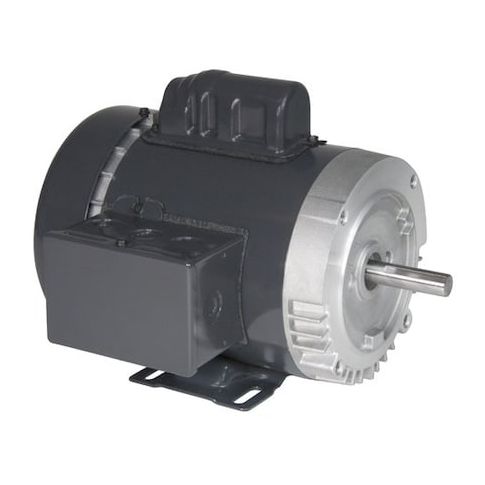

Capacitor-Start General Purpose Motor, 1 hp HP, 56C Frame, 115/208-230V AC Voltage
This 1 hp Capacitor-Start General Purpose Motor is designed for a wide range of applications, including industrial and commercial use. Its 56C frame and 3,450 RPM nameplate speed make it suitable for applications where high torque and efficiency are required. The motor's totally enclosed fan-cooled design provides reliable operation in various environments. With its continuous duty cycle and 1.15 service factor, this motor can handle demanding tasks and harsh conditions. Its compact size and lightweight design make it easy to integrate into existing systems, making it an ideal choice for industries such as manufacturing, material handling, and HVAC.
Top product features:
- Totally Enclosed Fan Cooled design provides improved motor protection and cooling
- Single Phase motor design allows for efficient operation on a single power source
- Capacitor-Start motor design enables high starting torque and efficient operation
Top product applications:
- Pumps
- Fans
- Compressors
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 13.6/6.9-6.8 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.60
- Package Width: 10.60
- Package Height: 10.90
- Package Weight: 27.80
Product info last updated on April 9, 2026 7:38am UTC
Category: Motors
