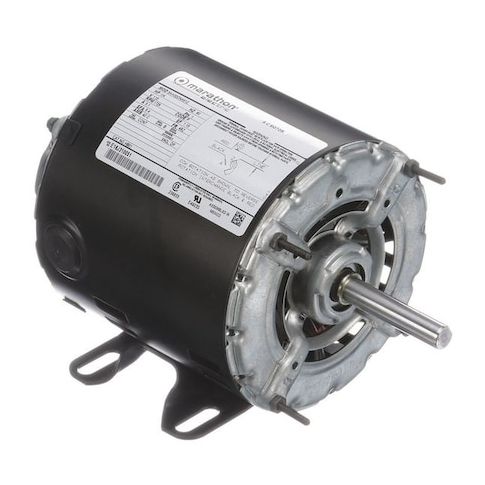

Split-Phase 1/4 hp HP, 48Z Frame, 115V AC Voltage, 1, 725 RPM Nameplate RPM 9 3/4 in Overall Length MPN:D14B2N4Z
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0200334
Split-Phase 1/4 hp HP, 48Z Frame, 115V AC Voltage, 1, 725 RPM Nameplate RPM 9 3/4 in Overall Length
This 1/4 hp split-phase motor is designed for general purpose use and is suitable for a variety of applications, including industrial and commercial settings. Its 1,725 RPM nameplate speed makes it ideal for applications requiring moderate speed and torque. The motor's open drip-proof enclosure protects against dust and water, while its continuous duty cycle ensures reliable operation. With a service factor of 1.35, this motor can handle above-average loads and temperatures up to 40°C. Its compact size and rigid base make it easy to install and integrate into existing systems. Suitable for use in a variety of industries and applications.
Top product features:
- Split-phase motor design for general-purpose applications
- Operates at 1,725 RPM for specific speed requirements
- Open drip-proof motor enclosure for protection in harsh environments
Top product applications:
- Pumps
- Fans
- Conveyors
General Purpose Motor, Single Phase, Motor Design Split-Phase, 1/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115V AC, Full Load Amps 5.3 A, 48Z Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.35, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.90
- Package Width: 8.30
- Package Height: 10.80
- Package Weight: 13.83
Product info last updated on February 4, 2026 9:29pm UTC
Category: Motors
