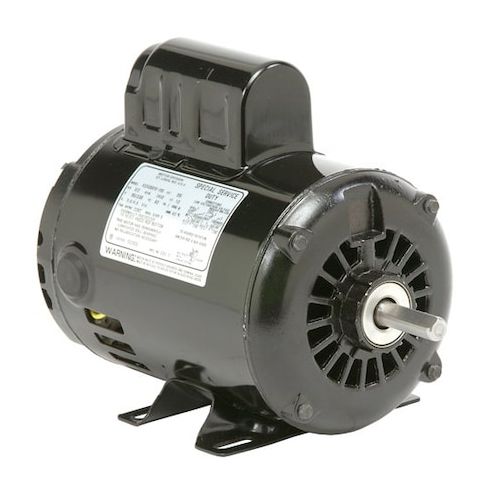

Capacitor-Start/Run General Purpose Motor, 1 hp HP, 56H Frame, 115/230V AC Voltage MPN:D1CPM2PH
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0199869
Capacitor-Start/Run General Purpose Motor, 1 hp HP, 56H Frame, 115/230V AC Voltage
This 1 hp capacitor-start/run motor is a reliable and efficient solution for a variety of applications, including industrial and commercial settings. With a nameplate RPM of 1,725 and a 60 Hz frequency, it provides consistent performance in single-phase systems. The motor's open drip-proof enclosure and rigid base mounting make it easy to integrate into existing equipment. Suitable for continuous duty cycles, this motor is perfect for applications such as pumps, fans, and conveyor systems. Its compact size and low amp draw make it an ideal choice for space-constrained environments, offering a cost-effective and reliable solution for a range of industrial needs.
Top product features:
- Capacitor-start/run design for efficient starting and continuous operation
- Single-phase motor design for use in a variety of applications
- Open drip-proof enclosure design for protection in harsh environments
Top product applications:
- Pump applications
- Fans and blowers
- Conveyor systems
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 8.8/4.4 A, 56H Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Manual, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.30
- Package Width: 8.30
- Package Height: 10.70
- Package Weight: 33.90
Product info last updated on February 12, 2026 12:08pm UTC
Category: Motors
