Capacitor-Start General Purpose Motor, 2 hp HP, 56C Frame, 115/230V AC Voltage MPN:D2CP2PCR
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0199485

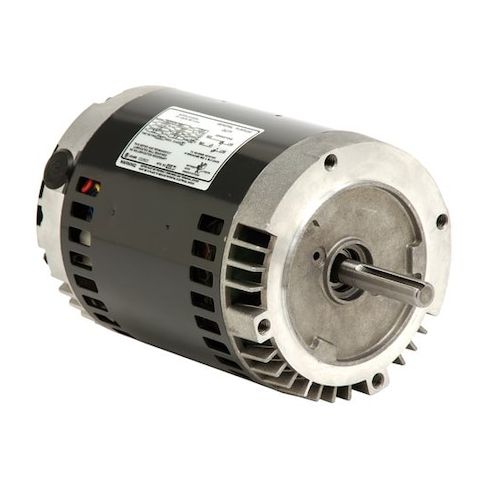

Capacitor-Start General Purpose Motor, 2 hp HP, 56C Frame, 115/230V AC Voltage
This 2 hp Capacitor-Start General Purpose Motor from US Motors is a reliable and efficient choice for a variety of applications. Suitable for use in 115/230V AC environments, it features a single-phase design with a high service factor of 1.15, ensuring optimal performance in continuous duty cycles. With a 56C frame and open drip-proof enclosure, it excels in harsh environments. Ideal for use in manufacturing, pumping, and HVAC systems, this motor offers a durable and cost-effective solution for demanding applications. Its compact size and CW/CCW rotation make it easy to integrate into existing systems, providing a seamless upgrade or replacement option.
Top product features:
- Capacitor-start design for efficient starting and running
- Single-phase motor operation for common household and commercial use
- Open drip-proof enclosure for protection against dust and water splashes
Top product applications:
- Pumps and water treatment equipment
- Fans and blowers
- Conveyors and material handling systems
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 17.0/8.5 A, 56C Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type C-Face, Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 10.50
- Package Height: 10.88
- Package Weight: 42.00
Product info last updated on February 21, 2026 4:57pm UTC
Category: Motors
