Capacitor-Start General Purpose Motor, 1/2 hp HP, 56C Frame, 115/230V AC Voltage MPN:D12CPA2PCR
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0199424

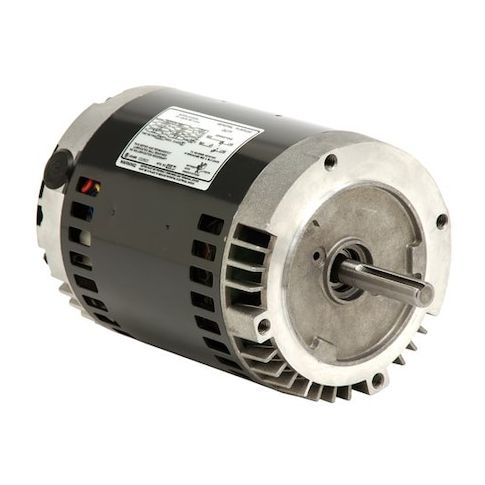

Capacitor-Start General Purpose Motor, 1/2 hp HP, 56C Frame, 115/230V AC Voltage
This 1/2 hp capacitor-start general purpose motor is designed for single-phase applications and offers reliable performance in a variety of settings. With a nameplate RPM of 1,725 and a voltage range of 115/230V AC, this motor is suitable for use in environments with standard 60 Hz frequency. Its open drip-proof enclosure and rigid base make it easy to install and maintain, while its continuous duty cycle and motor thermal protection ensure optimal performance and longevity. Ideal for use in commercial and industrial settings, this motor is a great choice for applications such as pumps, fans, and conveyor systems.
Top product features:
- Capacitor-start design for improved starting torque
- Single phase operation for easy integration with existing systems
- Continuous duty cycle for reliable operation in demanding applications
Top product applications:
- Home Appliance Repair
- Industrial Automation Systems
- Pumps and Pumping Systems
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 5.0/2.6 A, 56C Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class F, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type C-Face, Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.75
- Package Width: 8.25
- Package Height: 11.00
- Package Weight: 22.00
