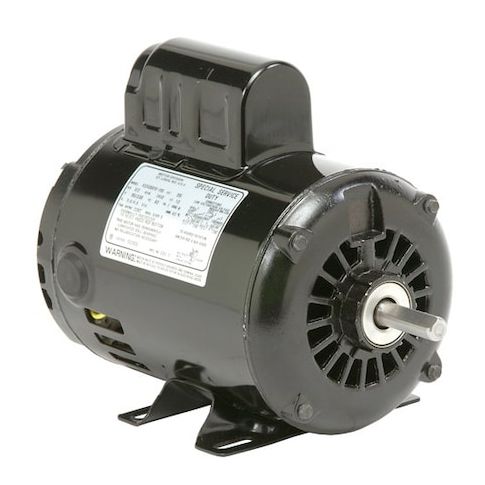

Capacitor-Start/Run General Purpose Motor, 1/3 hp HP, 56 Frame, 115/208-230V AC Voltage MPN:D13CPM2P
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0199169
Capacitor-Start/Run General Purpose Motor, 1/3 hp HP, 56 Frame, 115/208-230V AC Voltage
This 1/3 hp capacitor-start/run general purpose motor from US Motors is designed for a wide range of applications, including industrial and commercial use. Its single-phase design and 1,725 RPM make it suitable for tasks that require moderate speed and power. The motor's open drip-proof enclosure and rigid base mounting type provide protection from dust and moisture, making it ideal for use in harsh environments. With a service factor of 1.35 and a maximum ambient temperature of 40 degrees C, this motor offers reliable performance and long-lasting durability. Perfect for applications such as conveyor systems, pumps, and compressors.
Top product features:
- Capacitor-start/run design for improved starting and running performance
- Single-phase operation for use in a variety of applications
- Open drip-proof enclosure design for protection against dust and water ingress
Top product applications:
- Pump for small water treatment systems
- Fan motor for residential HVAC systems
- Conveyor motor for light manufacturing applications
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1/3 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 3.9/2.0-1.9 A, 56 Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.35, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Manual, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.70
- Package Width: 8.60
- Package Height: 10.40
- Package Weight: 18.00
Product info last updated on March 17, 2026 6:46am UTC
Category: Motors
