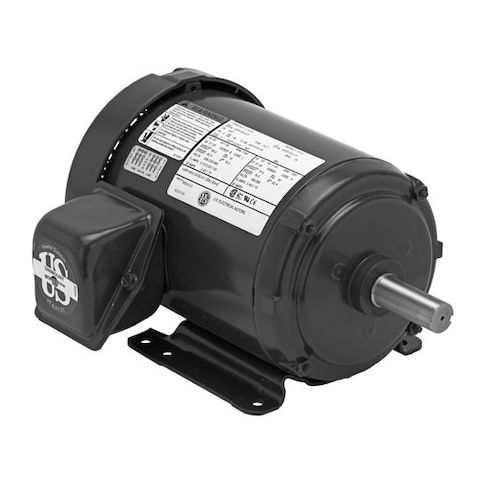

Three-Phase General Purpose Motor, 1/4 HP, 56 Frame, 208-230/460V AC Voltage, 1, 140 Nameplate RPM MPN:T14S3A
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0199080
Three-Phase General Purpose Motor, 1/4 HP, 56 Frame, 208-230/460V AC Voltage, 1, 140 Nameplate RPM
This 1/4 HP three-phase general purpose motor from US Motors is designed for a wide range of applications, including industrial equipment, pumps, and fans. Its totally enclosed fan cooled design provides reliable operation in harsh environments, while its 1,140 nameplate RPM ensures efficient performance. With a rigid base and ball bearings, this motor is built to last, and its 68.6% nominal efficiency reduces energy costs. Suitable for continuous duty, it's an ideal choice for applications requiring high reliability and low maintenance, such as in manufacturing, water treatment, and HVAC systems. Its compact size and easy installation make it a convenient solution for many industries.
Top product features:
- Three-Phase General Purpose Motor
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings
Top product applications:
- Industrial machinery
- Pumping systems
- Conveyors and material handling equipment
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1/4 HP, Nameplate RPM 1,140, Frame 56, Voltage 208-230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 1.4-1.5/.76 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 68.6 Percent, Continuous Duty, 1,101-1,200, CSA, UL
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.70
- Package Width: 12.10
- Package Height: 12.00
- Package Weight: 26.55
Product info last updated on March 1, 2026 5:43pm UTC
Category: Motors
