Capacitor-Start General Purpose Motor, 3/4 hp HP, 56C Frame, 115/208-230V AC Voltage MPN:T34C2JCR
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0199047

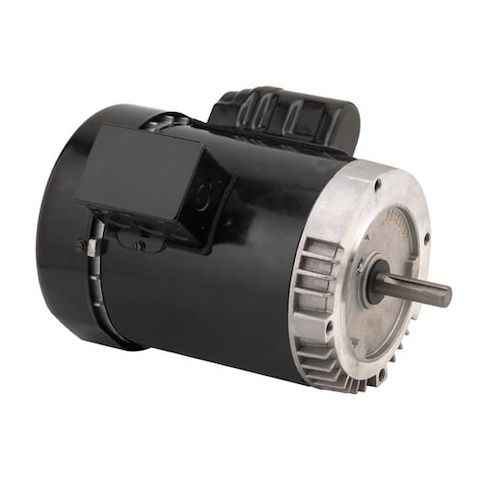

Capacitor-Start General Purpose Motor, 3/4 hp HP, 56C Frame, 115/208-230V AC Voltage
This 3/4 hp Capacitor-Start General Purpose Motor from US Motors is a reliable and efficient solution for a variety of applications. Suitable for use in 115/208-230V AC environments, it offers a nameplate RPM of 1,725, making it ideal for applications requiring moderate speed. The motor's totally enclosed fan-cooled design ensures long-lasting performance, even in high-temperature environments. With a continuous duty cycle and motor service factor of 1.15, this motor is perfect for use in industrial settings, such as manufacturing, material handling, and commercial facilities. Its compact 56C frame makes it easy to install and maintain.
Top product features:
- Totally Enclosed Fan Cooled design provides a safe and reliable operating environment for the motor.
- Capacitor-Start motor design allows for efficient and consistent power delivery.
- Continuous duty cycle enables the motor to operate for extended periods without overheating.
Top product applications:
- Pumps
- Fans
- Conveyors
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 3/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 11.4/5.7-5.7 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 12.00
- Package Height: 12.00
- Package Weight: 30.00
Product info last updated on March 29, 2026 4:46pm UTC
Category: Motors
